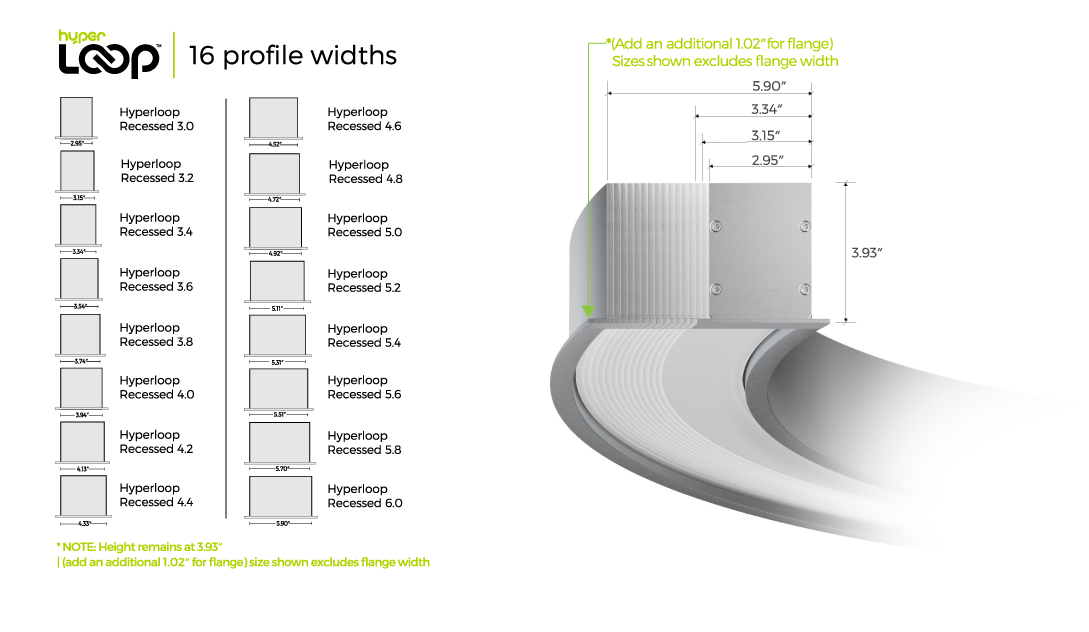

Available in 16 profile widths from 2.95″ to 5.90″
(In 0.20″ increments)
Data Table
| Output | 44.09″ | Luminous Flux (Delivered Lumens) |
HO 3500 |
|
| ProformaxS | CRI | 90+ | ||
| Lumen Maintenance | L80 B20 89,000 Hours @ 77ºF | |||
| Warranty | ProformaxS | 7 Years | ||
| Electrical | Power Consumption | Between 6.1 and 13.7W/f | ||
| Voltage input range | 120 – 277V | |||
| Control methods | 0-10 volts / Dali control gear / DSi compatible / DMX / Dimmer switch / Constant light output / Motion sensor / Ripple Free / Blutooth mesh / Casambi control wireless system | |||
| Total harmonic distortion THD | 9.8% max | |||
| Approvals | UL / AS:NZS / EMC | |||
| Physical | Dimensions | 3.97” – 6.93” Wide (in 0.20” increments) x 3.94” High | ||
| Weight per foot | 2.95” = 3.13lbs, 3.15” = 3.20lbs, 3.34” = 3.27lbs, 3.54” = 3.34lbs, 3.74” = 3.41lbs 3.93” = 3.48lbs, 4.13” = 3.55lbs, 4.33” = 3.62lbs, 4.52” = 3.70lbs, 4.72” = 3.77lbs 4.92 ” = 3.84lbs, 5.11” = 3.91lbs, 5.31” = 3.98lbs, 5.51” = 4.05lbs, 5.70” = 4.12lbs, 5.90 ”= 4.19lbs (Add an additional 1.02” for flange width) | |||
| Housing | Aluminium Extrusion with powder-coated finish: Black / White Texture, Silver, (or) optional selected powder-coated finishes |
|||
| Diffuser | Frosted acrylic lens | |||
| Connections | Speed connect joining with polarised electrical connection between sections | |||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | |||
| Mounting | Gyprock clips available up to Version 4.0 wider variants require custom mounting | |||
| Joiner options | Lit corner 90º / Cross 90º / Tee 90º / Straight 180º join | |||
| Bend Radii | 16.92”R / 32.67”R / 48.42”R as standard with custom radii available | |||
| Operating temperatures | ProformaxS = (-13ºF to 95ºF) | |||
| Environment | Dry indoor applications only | |||
| Minimum length adjustment | Proformax S = 5.51” | |||
| LED Board types | Proformax S LED boards in 5.51” / 11.02” 22.04” Zhaga compatible | |||
| Accessories | Various connection shapes available | |||
| Configurations | Down only | |||
| Emergency Packs | Spitfire emergencies / Back up battery packs available | |||
For photometric data and specification information refer to xerolighting.com/configurator
Standard Bend Options
(Other custom options available)
Examples of possible shapes using standard
straights, bends & Joiners
The HyperLoop series has a wide selection of standard connection options from straight, mitre bends, curves Y and V bends that creates a myriad of different shapes.
HyperLoop installation template
Xero HyperLoop profiles come with the mounting templates that allow for easy installation.
The template should be assembled on the floor and the position in the room checked against the reflected
ceiling plan then suspension positions should be laser transferred to the ceiling for accurate positioning before
installing. Individual sections ‘click’ together to create an exact template of the actual luminaire.
Ease for installation is just another standard from the leader in linear lighting innovation.
Shape illustrated is an example only.
Templates are supplied on projects that
contain arc bends for individual designs and shapes
