XTA | 1.5 Beam IP55

Click on any of the above icons to view the latest Xero Technology components and systems

PRODUCT OVERVIEW

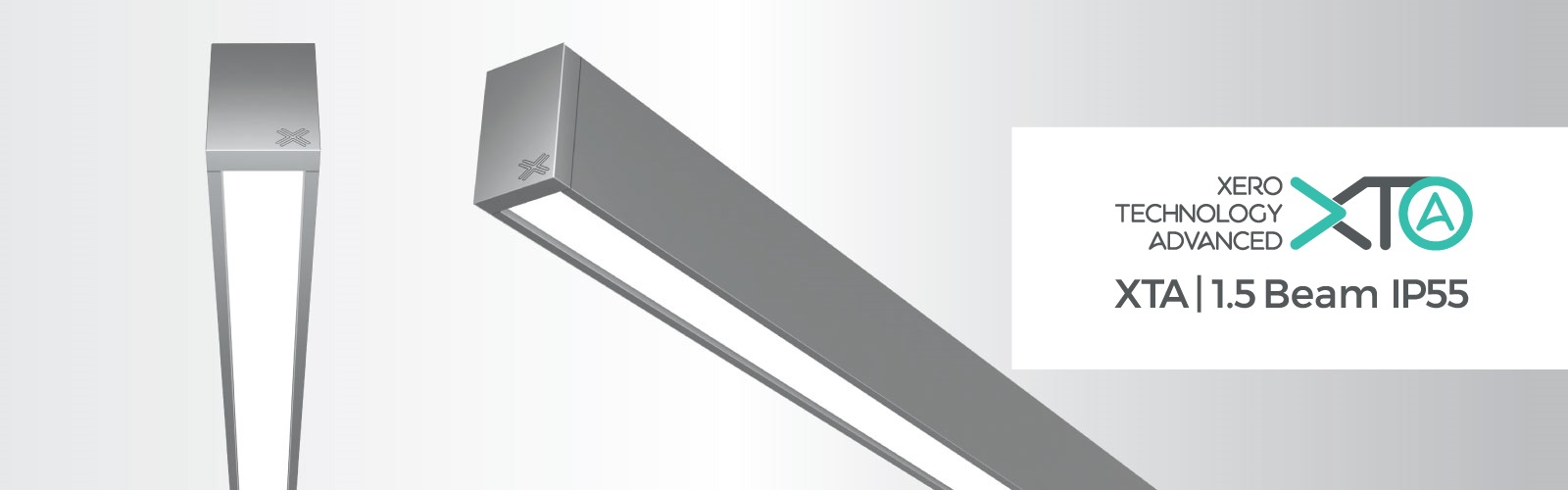

XTA |1.5 Beam IP55 – Size: 40 Wide x 117mm Highintegral gear continuous

FEATURES
The XTA 1.5 IP55 series is a narrow body profile that has superior optics, gasketed section joins, unlit bends, and removable gear trays that can be upgraded in the future.

WARRANTY
All XTA products come with a 7-year standard warranty using Proformax light engines, or the 10-year advanced industry-leading warranty using Xeramix1.
Xero also offers their optional 15-year warranty when you choose to select XeramixR.
Go to xerolighting.com/warranty for more details

DATA TABLE

LED Engine	4ft Length 1120mm	Luminous Flux (Delivered Lumens)	LO 1900	HO 3500
	Xeramix	CRI	80+
		Lumen Maintenance:	114,000 Hours ( L90 B10 @ 50º )
	Proformax	CRI:	90+
		Lumen Maintenance:	82,000 Hours ( L80 B10 @ 35º )
Warranty	Xeramix		10 years
	Proformax		7 years
Electrical	Power Consumption		Between 20 and 45w/m
	Voltage input range		120 – 277V
	Control methods		Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI
	Total harmonic distortion THD		9.8% max
	Approvals		UL / CE / CCC / AS:NZS / EMC
Physical	Dimensions		40 x 117mm
	Weight per metre		5.6kg (12Ibs) average weight
	Housing		Aluminium Extrusion with anodised or powdercoated finish
	Downward diffuser Connections		Frosted acrylic lens / Polycarbonate lens / microprism lens Polarised electrical connection between gasket section joins
	Compatible ceiling type		Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings
	Mounting		Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount
	Joiner options		(Unlit Joins) Corner 90º / Cross 90º / Tee 90º / Straight 180º join
	Operating temperatures		Xeramix = -25ºC to 50ºC (-13ºF to 140ºF) Proformax = -25ºC to 35ºC (-13ºF to 95ºF)
	Environment		IP55 (Not in direct sunlight)
	Minimum length adjustment		Xeramix = 1mm Proformax = 25mm
	LED Board types		Xeramix LED boards in 25 / 100 / 280 / 560mm lengths Zhaga compatible Proformax LED boards in 50 / 280mm / 560mm lengths Zhaga compatible

PENDANT LENGTHS

DESCRIPTION	PENDANT LENGTHS
total luminaire length in mm	590	870	1150	1430	1710	1990	2270	2550	2830	3110	3390
total luminaire length in inches	23	34	45	56	67	78	89	100	111	122	133
‘560 board multiples	1	1.5	2.0	2.5	2.0	3.5	4.0	4.5	5.0	5.5	6.0

CONTINUOUS RUNS

DESCRIPTION	CONTINUOUS RUNS
total luminaire length in mm	3670	3950	4230	4790	5070	5350	5630	5910	6190	6470	6750
total luminaire length in inches	144	155	166	177	188	199	210	232	243	254	265
‘560 board multiples	6.5	7	7.5	8.0	8.5	9.0	9.5	10.0	10.5	11.0	11.5

DESCRIPTION	CONTINUOUS RUNS
total luminaire length in mm	7030	7310	7590	7870	8150	8430	8710	8990	9270	9550	9830
total luminaire length in inches	276	287	298	309	320	331	342	353	364	375	386
‘560 board multiples	12.0	12.5	13.0	13.5	14.0	14.5	15.0	15.5	16.0	16.5	17.0

DESCRIPTION	CONTINUOUS RUNS
total luminaire length in mm	10110	10390	10670	10950	11230	11510	11790	12070	12350	12630	12910
total luminaire length in inches	397	408	419	430	441	452	463	474	485	496	507
‘560 board multiples	17.5	18.0	18.5	19.0	19.5	20.0	20.5	21.0	21.5	22.0	22.5

DESCRIPTION	CONTINUOUS RUNS
total luminaire length in mm	13190	13470	13750	14030	14310	14590	14870	15150	15430	15710	15990
total luminaire length in inches	518	529	540	551	562	573	584	595	606	617	628
‘560 board multiples	23.0	23.5	24.0	24.5	25.0	25.5	26.0	26.5	27.0	27.5	28.0

DESCRIPTION	CONTINUOUS RUNS
total luminaire length in mm	16270	16550	16830	17110	17390	17670	17950	18230	18510	18790	19070
total luminaire length in inches	639	650	661	672	683	694	705	716	727	738	749
‘560 board multiples	28.5	29.0	29.5	30.0	30.5	31.0	31.5	32.0	32.5	33.0	33.5

All the above lengths are for Non-IP rated systems only. Lengths vary slightly when IP rated systems are selected.
Please consult your local Xero representative for details

CUSTOM LENGTHS

CUSTOM LENGTHS
Custom lengths for Xeramix are available in 0.0393701” [1mm] increments above the minimum pendant length of 23” [590mm]
Custom lengths for Proformax are available in 0.984252” [25mm] increments above the minimum pendant length of 23” [590mm]

The XTA | 1.5 series brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTA | 1.5 series is the perfect choice for offices, retail and public spaces.
Xeramix LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards. The LED light engines have 114,000 hour life to L90 and 3 step McAdam ellipse at END OF LIFE at 50ºC. This performance is unmatched.

L80 B10 82,000 hours @35ºC
Proformax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Proformax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.

L90 B10 114,000 hours @ 50ºC
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable

L70 B10 1,000,000 hours @35ºC
Xeramix R boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable.

3000k_symbol 4000k 5000k rgb_symbol rgbw_symbol tuneable-white_symbol cyanosis_symbol

down_symbol up_symbol up_down_symbol

Up Optics

Down Optics

click on selection above to view larger image

135_symbol cross-90_symbol tee-90_symbol corner-90_symbol ceiling-to-wall_symbol custom_symbol

downlights_symbol sensors-daylight-harvesting_symbol emergency-packs_symbol

STANDARD COLOURS

Textured White 90133641 Textured White90133641

10 Micron Anodised Aluminium 10 Micron Anodised Aluminium

Textured Black 90132679 Textured Black90132679

RAL COLOURS

* Additional cost

RAL 9010
Pure White Satin PR12/40197/CS1 RAL 9010
Pure White SatinPR12/40197/CS1

RAL 7035
Light Grey Satin PR12/60978/CS1 RAL 7035
Light Grey SatinPR12/60978/CS1

RAL 9003
Signal White Satin PR12/40197/CS1 RAL 9003
Signal White SatinPR12/40197/CS1

RAL 1015
Light Ivory Gloss PR12/941/C72 RAL 1015
Light Ivory GlossPR12/941/C72

RAL 7032
Pebble Grey Satin PR12/60232/CS2 RAL 7032
Pebble Grey SatinPR12/60232/CS2

RAL 6002
Leaf Green Gloss PR12/20726/C12 RAL 6002
Leaf Green GlossPR12/20726/C12

RAL 9005
Jet Black Gloss PR12/710/C42 RAL 9005
Jet Black GlossPR12/710/C42

RAL 9004
Signal Black Matt PR18/7120/CM3 RAL 9004
Signal Black MattPR18/7120/CM3

RAL 5012
Light Blue Satin PR12/30670/CS5 RAL 5012
Light Blue SatinPR12/30670/CS5

RAL 5005
Signal Blue Satin PR12/30263/CS6 RAL 5005
Signal Blue SatinPR12/30263/CS6

RAL 1021
Colza Yellow Satin PR12/60464/CS6 RAL 1021
Colza Yellow SatinPR12/60464/CS6

RAL 1018
Zinc Yellow Gloss PR12/159/C46 RAL 1018
Zinc Yellow GlossPR12/159/C46

RAL 1003
Signal Yellow Gloss PR12/134/C36 RAL 1003
Signal Yellow GlossPR12/134/C36

RAL 2000
Yellow Orange Gloss PR12/650/C38 RAL 2000
Yellow Orange GlossPR12/650/C38

RAL 2009
Traffic Orange Gloss PR12/6162/C21 RAL 2009
Traffic Orange GlossPR12/6162/C21

ANODISED FINISHES

* Additional cost

25 micron Annodised 25 micron Annodised

Grey Anodised Grey Anodised

Black Anodised Black Anodised

Green Anodised Green Anodised

Gold Anodised Gold Anodised

Blue Anodised Blue Anodised

Red Anodised Red Anodised

NON-STANDARD COLOURS

* Additional cost
alphatec classic white gloss 27281880 alphatec classic white gloss27281880	alphatec blaze blue gloss 98419941 alphatec blaze blue gloss98419941	alphatec french blue gloss 98432725 alphatec french blue gloss98432725
alphatec pommel blue gloss 98451034 alphatec pommel blue gloss98451034	alphatec space blue gloss 98419990 alphatec space blue gloss98419990	alphatec navy gloss 98450282 alphatec navy gloss98450282
alphatec dark violet gloss 98451926 alphatec dark violet gloss98451926	alphatec flame red gloss 98419959 alphatec flame red gloss98419959	alphatec signal red 98450735 alphatec signal red98450735
safety yellow gloss 9842015G safety yellow gloss9842015G	alphatec yellow gold gloss 98433617 alphatec yellow gold gloss98433617	alphatec lemon yellow gloss 98432120 alphatec lemon yellow gloss98432120
alphatec orange x15 gloss 98451439 alphatec orange x15 gloss98451439	alphatec mistletoe gloss 98451040 alphatec mistletoe gloss98451040	alphatec transformer grey gloss 98432186 alphatec transformer grey gloss98432186
Aztec Black 90182757 Aztec Black90182757	APO Grey Scylla 90136612 APO Grey Scylla90136612	Aztec Silver 90185040 Aztec Silver90185040
Black Scylla 90150003 Black Scylla90150003	Black texture 90132679 Black texture90132679	Copper Kinetic Pearl Satin 9717183K Copper Kinetic Pearl Satin9717183K
Graphite Sarouk 93551677 Graphite Sarouk93551677	Grey Hammer 90185184 Grey Hammer90185184	Gunmetal Kinetic Pearl Satin 9718115K Gunmetal Kinetic Pearl Satin9718115K
Horizon White Scylla 90151608 Horizon White Scylla90151608	Light Grey Scylla 90150766 Light Grey Scylla90150766	Mid Bronze Matt 27251014 Mid Bronze Matt27251014
Metropolis Silver Glow Gloss 97184623 Metropolis Silver Glow Gloss97184623	Notre Dame Scylla 90150223 Notre Dame Scylla90150223	Onyx Pearl Gloss 97152052 Onyx Pearl Gloss97152052
Pewter Pearl Satin 97188202 Pewter Pearl Satin97188202	Platypus Kinetic Pearl Satin 9717214K Platypus Kinetic Pearl Satin9717214K	Red Brown Scylla 90185473 Red Brown Scylla90185473
Silver Glow Pearl Gloss 97184623 Silver Glow Pearl Gloss97184623	Silver Grey Matt 27251272 Silver Grey Matt27251272	Silver Lode Pearl Texture 9017034Z Silver Lode Pearl Texture9017034Z
Silver Sarouk 93584874 Silver Sarouk93584874	St Elmos Fire Kinetic Pearl Satin 9717208K St Elmos Fire Kinetic Pearl Satin9717208K	Steel pearl Satin 97157127 Steel pearl Satin97157127
Stone Beige Scylla 90185474 Stone Beige Scylla90185474	Storm Grey Scylla 90150183 Storm Grey Scylla90150183	Zincshield Matt 9907036M Zincshield Matt9907036M
Shoji White Satin 27284682 Shoji White Satin27284682	clear gloss 91081797 clear gloss91081797	Charcoal Gloss 2729086G Charcoal Gloss2729086G
White Matt 96132312 White Matt96132312	Magnolia Gloss 27232658 Magnolia Gloss27232658	Olde Pewter Satin 27250243 Olde Pewter Satin27250243
Metropolis Storm Satin 97184684 Metropolis Storm Satin97184684	Primrose Scylla 9013005Z Primrose Scylla9013005Z	Classic Hawthorn Green Gloss 27233709 Classic Hawthorn Green Gloss27233709
Cottage Green Satin 27284219 Cottage Green Satin27284219	Mannex Suede, Texture 90137543 Mannex Suede, Texture90137543	APO Grey Satin 27232786 APO Grey Satin27232786
Berry Grey, Gloss 2727262G Berry Grey, Gloss2727262G	Citi Matt 97188471 Citi Matt97188471	JASPER satin 2728122S JASPER satin2728122S
armourspray velocity green 91033709 armourspray velocity green91033709	armourspray white gloss 91019143 armourspray white gloss91019143	barley gloss 2723089G barley gloss2723089G
barrister white satin 27284672 barrister white satin27284672	black Sarouk 93551146 black Sarouk93551146	black CB night sky satin 95981878 black CB night sky satin95981878
black satin 90109024S black satin90109024S	Black Gloss 2729090G Black Gloss2729090G	Black Matt 27219319 Black Matt27219319
blue ridge satin 27288480 blue ridge satin27288480	blue Hammer 90185159 blue Hammer90185159	bright silver metallic gloss 96151491 bright silver metallic gloss96151491
bright white gloss 27284636 bright white gloss27284636	canola cream satin 27281796 canola cream satin27281796	champagne Kinetic Matt 9713059K champagne Kinetic Matt9713059K
charcoal Metallic Pearl Gloss 97118796 charcoal Metallic Pearl Gloss97118796	charcoal satin 27288351 charcoal satin27288351	classic cream satin 2722095S classic cream satin2722095S
copper satin 9614137Q copper satin9614137Q	dark grey Matt 27251275 dark grey Matt27251275	deep brunswick green 2726134G deep brunswick green2726134G
deep ocean satin 2725125S deep ocean satin2725125S	dune satin 2723087S dune satin2723087S	duralloy white satin 2721139S duralloy white satin2721139S
evening haze satin 2723055S evening haze satin2723055S	ironstone satin 2727257S ironstone satin2727257S	light grey gloss 2727263G light grey gloss2727263G
magnolia Scylla gloss 90133618 magnolia Scylla gloss90133618	manor red satin 2724134S manor red satin2724134S	monument matt 9599066M monument matt9599066M
monument satin 2729067S monument satin2729067S	natural pearl matt 97189119 natural pearl matt97189119	notre dame gloss 27236672 notre dame gloss27236672
off white satin 27233732 off white satin27233732	olde pewter satin 26050243 olde pewter satin26050243	oyster matt 27236858 oyster matt27236858
paperbark satin 2723088S paperbark satin2723088S	pearl white gloss 2721114G pearl white gloss2721114G	precious nickel pearl matt 97188360 precious nickel pearl matt97188360
primrose gloss 27284365 primrose gloss27284365	rivergum beige gloss 27236991 rivergum beige gloss27236991	riversand matt 95936656 riversand matt95936656
shale grey satin 27283246 shale grey satin27283246	stone grey satin 27278126 stone grey satin27278126	streetwise silver satin 9107049Q streetwise silver satin9107049Q
surfmist matt 95984758 surfmist matt95984758	surfmist satin 2721137S surfmist satin2721137S	weathered copper matt 27233724 weathered copper matt27233724
wedgewood satin 27250279 wedgewood satin27250279	white birch gloss 27237131 white birch gloss27237131	wilderness satin 27284224 wilderness satin27284224
windspray satin 2727256S windspray satin2727256S	woodland grey matt 95951698 woodland grey matt95951698	woodland grey satin 272255S woodland grey satin272255S

X | TEK PREMIUM FINISHES

* Additional cost
Concrete Finishes
Charcoal Concrete Charcoal Concrete	Polished Concrete Polished Concrete
Light Concrete Light Concrete
Rust Finishes
Desert Sand Desert Sand	Edgy Auburn Edgy Auburn
Earthy Ochre Earthy Ochre	Morrocan Spice Morrocan Spice
Woodgrain Finishes
Antique White Antique White	Natural American Oak Natural American Oak
Dark Mocha Dark Mocha	Driftwood Driftwood
European Walnut European Walnut	Natural Blackbutt Natural Blackbutt
Natural Bush Cherry Natural Bush Cherry	Natural Casuarina Natural Casuarina
Natural Chestnut Natural Chestnut	Natural Curly Birch Natural Curly Birch
Natural Ebony Natural Ebony	Natural French Oak Natural French Oak
Natural Golden Gum Natural Golden Gum	Natural Golden Oak Natural Golden Oak
Natural Ironbark Natural Ironbark	Natural Jarrah Natural Jarrah
Natural Kwila Natural Kwila	Natural Maple Natural Maple
Natural Silky Oak Natural Silky Oak	Natural Snow Gum Natural Snow Gum
Natural Spotted Gum Natural Spotted Gum	Natural Tasmanian Oak Natural Tasmanian Oak
Natural Teak Natural Teak	Natural Wenge Natural Wenge
Smoked Ash Smoked Ash	Walnut Burl Walnut Burl
Weathered Timber Weathered Timber	Western Red Cedar Western Red Cedar
Rose Mahogany Rose Mahogany	African Blackwood African Blackwood

* Other options including custom colour matching available on request
Contact your nearest Distributor – xerolighting.com/contact
