PRODUCT OVERVIEW

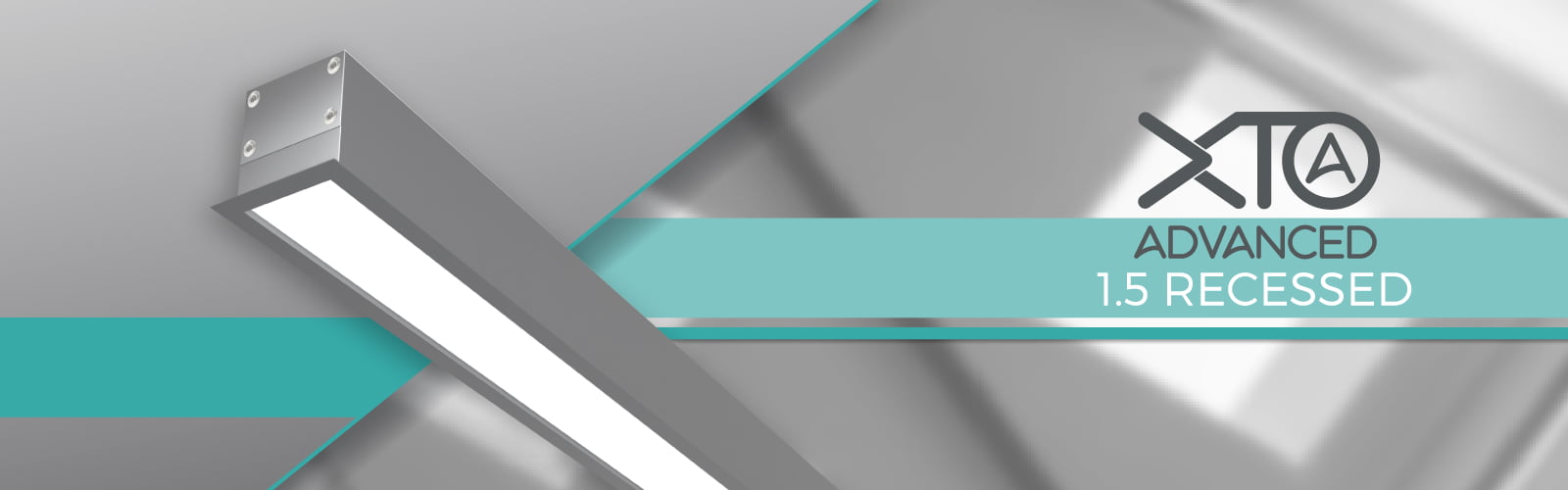

XTA | 1.5 Recessed 1.57” Wide (2.12” inc flange) x 2.87” Highintegral gear continuous

The XTA 1.5 series is a slim body profile with superior optics and a unique patented speed-connect joining system that ensures “light leak free joins” with removable gear trays that can be upgraded in the future.

FEATURES
Xero ProformaxS light engines are complete with drivers plus 90º and 180º joiners that can be lit or unlit.
This allows a continuous ribbon of light without compromise.

DATA TABLE
Output CRI 80+
Warranty Proformax 7 years
Electrical Voltage imput range 120 – 277V
Control methods Dimming options for white light: 0-10V, DALI
Dimming control: DALI
Total harmonic distortion THD 9.8% max
Approvals UL / CE / CCC / AS:NZS / EMC
Physical Dimensions 1.57” Wide (2.12” inc flange) x 2.87” High
Weight  0.91 lbs average weight per foot
Housing Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request
Diffuser Polycarbonate Opal Diffuser/ Clear Polycarbonate Diffuser / White Louvre /
Semi Specular Louvre
Connections Speed connect joining system with polarised electrical connection between
sections
Compatible ceiling type Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings
Mounting Drywall clips as standard
Joiner options Lit corner 90º / Cross 90º / Tee 90º / Straight 180º Join
Operating temperatures ProformaxS – (-13ºF to 140ºF)
Environment Dry indoor application only IP20
Minimum length adjustment 5.51″
LED Board types ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible
Optional Extras Emergency packs

The XTA | 1.5 Xero Linear Lighting System brings high-quality dot free illumination to commercial interiors and semi- exterior environments. Featuring the latest generation of LED technology, The XTA series is the ideal choice for your next project.
ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the life of the boards.

L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable

3000k_symbol4000k_symbol5000ktuneable-white_symbolcyanosis_symbol

down_symbol



click on selection above to view larger image

135_symbolcross-90_symboltee-90_symbolcorner-90_symbolceiling-to-wall_symbolcustom_symbol

downlights_symbol sensors-daylight-harvesting_symbol emergency-packs_symbol spitfire-emergency_symbol

0-10v_symboldali-control-gear_symboldsi-compatible_symboldmx_symboldimmer-switch_symbolconstant-light-output_symbolmotion-sensor_symbolripple-free_symbolbluetooth_symbol*













* For this profile the Casambi mini interface is available for remote configuration only.

ul-cert_symbol

brochure_symbol
cad-drawing_symbol
brochure_symbol

* Casambi interface is only available in runs <393″ long. Runs over this length require a remote configuration
