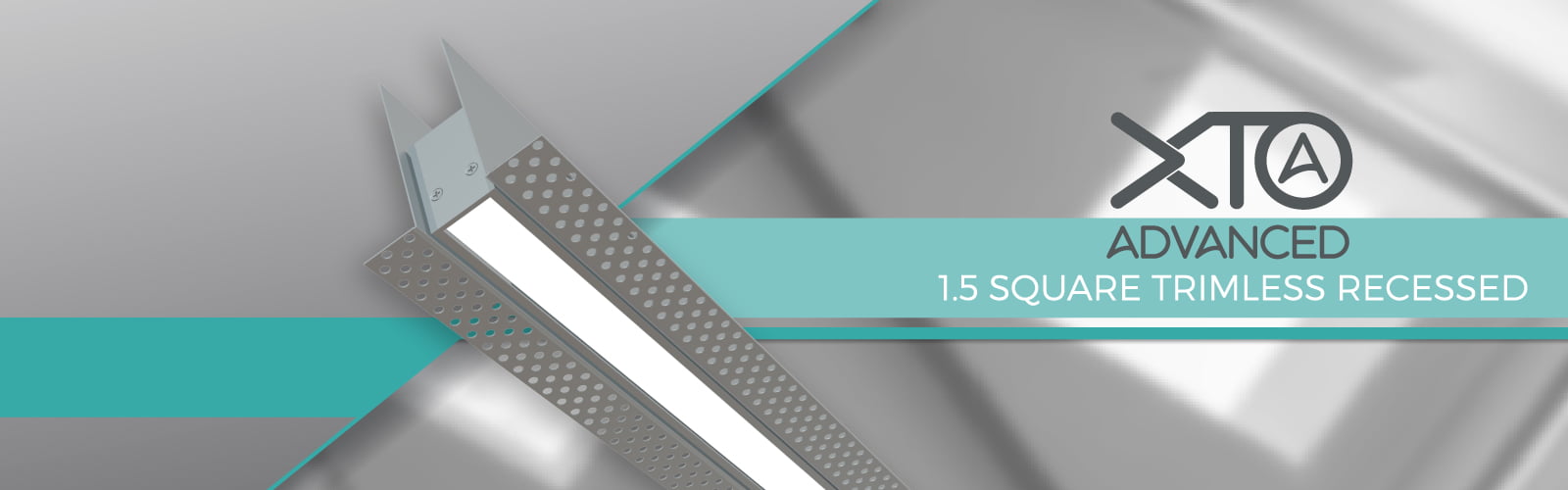

XTA 1.5 Slot TR Size: (Niche) 4.44“ wide x 4.72“ High (Luminaire 1.57“ Wide x 2.87” Highintegral gear continuous
PRODUCT OVERVIEW
The XTA 1.5 series is a slim body profile that has superior optics and Xero’s patented Speed join system that enables truly “light leak free joins” and removable gear trays that can be upgraded in the future.
FEATURES
Xero’s ProformaxS light engines with drivers come with 90º and 180º joiners that can be lit or unlit. This allows possibilities that provide continuous ribbons of light without compromise. All XTA products come with a 7 year warranty using ProformaxS light engines.
DATA TABLE
| Output | CRI | 80+ | |||
| Warranty | Proformax | 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI Dimming control: DALI |
||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions – (Niche) | 4.44“ Wide x 4.72“ High | |||
| Dimensions – (Luminaire) | 1.57“ Wide x 2.87” High | ||||
| Weight – (Niche) | 3.0Ibs average weight per foot | ||||
| Weight – (Luminaire) | 2.13lbs average weight per foot | ||||
| Distribution | Symmetric / Asymmetric | ||||
| Housing | Aluminium Extrusion with anodised or powdercoated finish | ||||
| Diffuser | Frosted acrylic lens / Polycarbonate lens / microprism lens / white optic low brightness louvre | ||||
| Connections | Speed connect joining system with polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings | ||||
| Mounting | Site adjustable plaster trim kit (only) | ||||
| Joiner options | Lit corner 90º / Cross 90º / Tee 90º / Straight 180º Join | ||||
| Operating temperatures | ProformaxS – (-13ºF to 140ºF) | ||||
| Environment | Dry indoor application only IP20 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED Board types | ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible | ||||
| Optional Extras | Emergency packs | ||||
The XTA | 1.5 Xero Linear Lighting System brings high-quality dot free illumination to commercial interiors and semi- exterior environments. Featuring the latest generation of LED technology, The XTA series is the ideal choice for your next project.
ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFT of the boards.
L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
click on selection above to view larger image
 |
*
* For this profile the Casambi mini interface is available for remote configuration only.
* Casambi interface is only available in runs <393″ long. Runs over this length require a remote configuration
