PRODUCT OVERVIEW

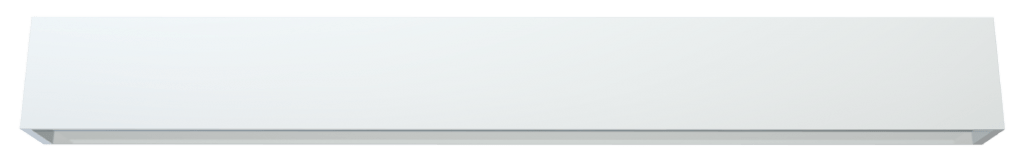

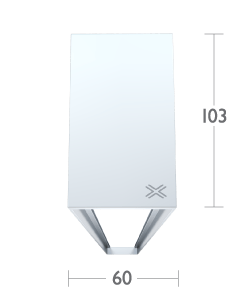

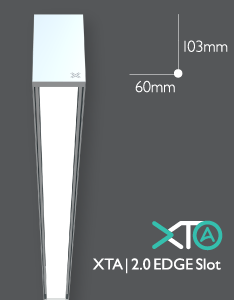

XTA | 2.0 EDGE Slot – Size: 60mm Wide x 103mm Highintegral gear continuous
The XTA | 2.0 EDGE series is a streamlined body profile that has superior optics and Xero’s patented Speed Connect joining system that enables truly “light leak free joins” and removable gear trays that can be upgraded in the future.
FEATURES
Xero’s Proformax and Xeramix light engines with drivers come with 90º and 180º joiners that can be lit or unlit. This allows possibilities that provide continuous ribbons of light without compromise. All XTA products come with a 7 year standard warranty using Proformax light engines, or the 10 year advanced industry leading warranty using Xeramix1. Xero also offers their optional 15 year warranty when you choose to select XeramixR.
Go to xerolighting.com/warranty for more details
DATA TABLE
|
LED Engine
|
4ft Length
1120mm |
Luminous Flux
(Delivered Lumens) |
LO
1900 |
HO
3500 |
|
| Xeramix | CRI | 80+ | |||
| Lumen Maintenance: | 114,000 Hours ( L90 B10 @ 50º ) | ||||
| Proformax | CRI: | 90+ | |||
| Lumen Maintenance: | 82,000 Hours ( L80 B10 @ 35º ) | ||||
| Warranty | Xeramix | 10 years | |||
| Proformax | 7 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m | |||
| Voltage input range | 120 – 277V | ||||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI | ||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 71X 100 mm | |||
| Weight per metre | 4.0kg (8.8Ibs) average weight | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish | ||||
| Diffuser | Frosted acrylic lens / Polycarbonate lens / microprism lens | ||||
| Connections | Speed connect joining system with polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings | ||||
| Mounting | Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount | ||||
| Bend Radii | 500mm / 1000mm / 1500mm as standard with custom radii available as an option | ||||
| Operating temperatures | Xeramix = -25ºC to 50ºC (-13ºF to 140ºF) Proformax = -25ºC to 35ºC (-13ºF to 95ºF) |
||||
| Environment | Dry indoor applications only | ||||
| Minimum length adjustment | Xeramix = 1mm Proformax = 25mm | ||||
| LED Board types | Xeramix LED boards in 25 / 100 / 280 / 560mm lengths Zhaga compatible Proformax LED boards in 50 / 280mm / 560mm lengths Zhaga compatible |
||||
PENDANT LENGTHS
|
DESCRIPTION
|
PENDANT LENGTHS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 585 | 865 | 1145 | 1425 | 1705 | 1985 | 2265 | 2545 | 2825 | 3105 | 3385 |
| total luminaire length in inches | 23 | 34 | 45 | 56 | 67 | 78 | 89 | 100 | 111 | 122 | 133 |
| ‘560 board multiples | 1 | 1.5 | 2.0 | 2.5 | 2.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 |
CONTINUOUS RUNS
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 3665 | 3945 | 4225 | 4505 | 4785 | 5065 | 5345 | 5625 | 5905 | 6185 | 6465 |
| total luminaire length in inches | 144 | 155 | 166 | 177 | 188 | 199 | 210 | 232 | 243 | 254 | 265 |
| ‘560 board multiples | 6.5 | 7 | 7.5 | 8.0 | 8.5 | 9.0 | 9.5 | 10.0 | 10.5 | 11.0 | 11.5 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 6745 | 7025 | 7305 | 7585 | 7865 | 8145 | 8425 | 8705 | 8985 | 9265 | 9545 |
| total luminaire length in inches | 276 | 287 | 298 | 309 | 320 | 331 | 342 | 353 | 364 | 375 | 386 |
| ‘560 board multiples | 12.0 | 12.5 | 13.0 | 13.5 | 14.0 | 14.5 | 15.0 | 15.5 | 16.0 | 16.5 | 17.0 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 9825 | 10105 | 10385 | 10665 | 10945 | 11225 | 11505 | 11785 | 12065 | 12345 | 12625 |
| total luminaire length in inches | 397 | 408 | 419 | 430 | 441 | 452 | 463 | 474 | 485 | 496 | 507 |
| ‘560 board multiples | 17.5 | 18.0 | 18.5 | 19.0 | 19.5 | 20.0 | 20.5 | 21.0 | 21.5 | 22.0 | 22.5 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 12905 | 13185 | 13465 | 13745 | 14025 | 14305 | 14585 | 14865 | 15145 | 15425 | 15705 |
| total luminaire length in inches | 518 | 529 | 540 | 551 | 562 | 573 | 584 | 595 | 606 | 617 | 628 |
| ‘560 board multiples | 23.0 | 23.5 | 24.0 | 24.5 | 25.0 | 25.5 | 26.0 | 26.5 | 27.0 | 27.5 | 28.0 |
|
DESCRIPTION
|
CONTINUOUS RUNS
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 15985 | 16265 | 16545 | 16825 | 17105 | 17385 | 17665 | 17945 | 18225 | 18505 | 18785 |
| total luminaire length in inches | 639 | 650 | 661 | 672 | 683 | 694 | 705 | 716 | 727 | 738 | 749 |
| ‘560 board multiples | 28.5 | 29.0 | 29.5 | 30.0 | 30.5 | 31.0 | 31.5 | 32.0 | 32.5 | 33.0 | 33.5 |
All the above lengths are for Non-IP rated systems only. Lengths vary slightly when IP rated systems are selected.
Please consult your local Xero representative for details
CUSTOM LENGTHS
|
CUSTOM LENGTHS
|
|---|
| Custom lengths for Xeramix are available in 0.0393701” [1mm] increments above the minimum pendant length of 23” [590mm] |
| Custom lengths for Proformax are available in 0.984252” [25mm] increments above the minimum pendant length of 23” [590mm] |
The XTA | 2.0 EDGE series brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTA | 2.0 EDGE series is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light.
Xeramix LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards. The LED light engines have 114,000 hour life to L90 and 3 step McAdam ellipse at END OF LIFE at 50ºC. This performance is unmatched.
L80 B10 82,000 hours @35ºC
Performax boards are CRI 90 as standard and have the highest efficiency currently on the market. The Performax boards also have the lowest sulfurisation deteriorisation compared to other plastic based chips on the market.
L90 B10 114,000 hours @ 50ºC
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
L70 B10 1,000,000 hours @35ºC
Xeramix R boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable.
 |
 |
 |
 |
 |
 |

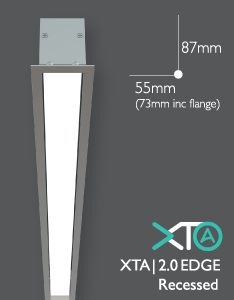

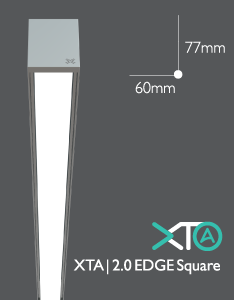

Meet The Family
XTA | 2.0 EDGE series
XTA | 2.0 EDGE

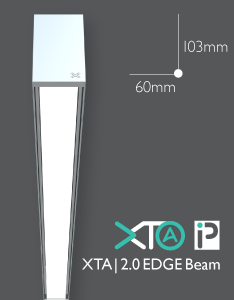

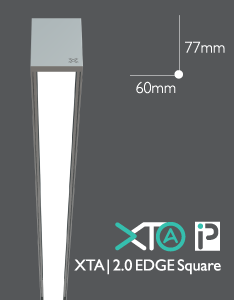

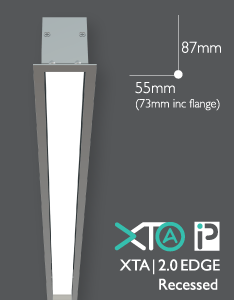

seriesIngress Protection IP55
