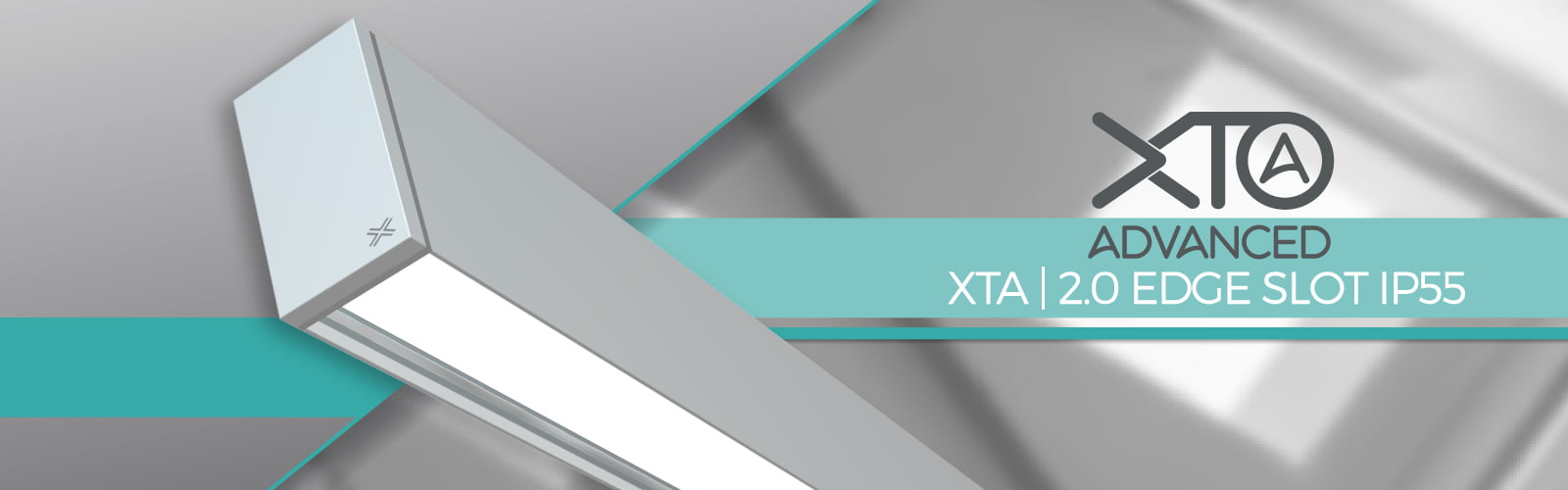

XTA | 2.0 EDGE Slot IP55 – Size: 2.36” Wide x 4.05” Highintegral gear continuous
PRODUCT OVERVIEW
![](https://xerolightingusa.com/wp-content/uploads/2018/10/XTA-EDGE-Beam_side-view-1024x162-1.x66874.png)
The XTA 2.0 EDGE series is a slim body profile with superior optics and a unique patented speed-connect joining system that ensures “light leak free joins” with removable gear trays that can be upgraded in the future.
FEATURES
Xero ProformaxS light engines are complete with drivers plus 90 degree and 180 degree joiners that can be lit or unlit. This allows a continuous ribbon of light without compromise.
![](https://xerolightingusa.com/wp-content/uploads/2018/10/XTA_2_0_EDGE_Slot-Dimensions.x66874.png)
![](https://xerolightingusa.com/wp-content/uploads/2017/06/Proformax-7-years_logo.x66874.png)
DATA TABLE
Output | CRI | 80+ | |||
Warranty | Proformax | 7 years | |||
Electrical | Voltage input range | 120 – 277V | |||
Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI |
||||
Total harmonic distortion THD | 9.8% max | ||||
Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
Physical | Dimensions | 2.36” Wide x 4.05” High | |||
Weight | 2.35 Lbs weight per foot | ||||
Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
Diffuser | frosted acrylic lens / Polycarbonate lens / microprism lens / Low UGR Plexiglass | ||||
Connections | Speed connect joining system with polarised electrical connection between sections |
||||
Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
Mounting | Surface Mounting / Custom Mounting / Rod Suspension / Wall Mounting | ||||
Joiner options | Lit corner 90º / Cross 90º / Tee 90º / Straight 180º Join | ||||
Operating temperatures | ProformaxS – (-13ºF to 140ºF) | ||||
Environment | IP55 (Not in direct sunlight) | ||||
Minimum length adjustment | 5.51″ | ||||
LED Board types | ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible | ||||
Optional Extras | Emergency packs |
