PRODUCT OVERVIEW

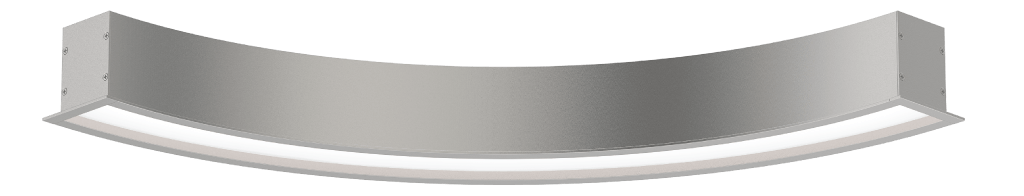

XTA | 2.0 LOOP Recessed – Size: 2.36” Wide (including flange 3.38“ Wide) x 3.93” Highintegral gear continuous

The XTA | 2.0 Loop series is a streamlined body profile that can be formed into a myriad of shapes and sizes – from simple curved corners to the most complex configurations.
The only limit is your imagination.
Superior optics and Xero’s patented Speed Connect joining system enables “light leak free joins” and removable gear trays that can be upgraded in the future.

DATA TABLE
Output CRI 80+
Warranty Proformax 7 years
Electrical Voltage input range 120 – 277V
Control methods Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset
Dimming control DMX or DALI XI
Total harmonic distortion THD 9.8% max
Approvals UL / CE / CCC / AS:NZS / EMC
Physical Dimensions 2.36” Wide (including flange 3.38“ Wide) x 3.93” High
Weight 2.48 Lbs average weight per foot
Housing Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request
Diffuser Polycarbonate Opal Diffuser/ Clear Polycarbonate Diffuser
Connections Speed connect joining system with polarised electrical connection between
sections
Compatible ceiling type Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings
Mounting Drywall clips as standard
Bend Radii 16.92″R / 32.07″R / 48.42″R as standard with custom radii available
Mitre Bend options Lit corner 90º/ Cross 90º/ Tee 90º/ Straight 180º (No unlit)
Endplate Options Conseal flat or optional curved end plates
Operating temperatures ProformaxS – (-13ºF to 140ºF)
Environment Dry indoor application only IP20
Minimum length adjustment 5.51″
LED Board types ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible
Optional Extras Emergency packs

The XTA | 2.0 Xero Linear Lighting System brings high-quality dot free illumination to commercial interiors and semi- exterior environments. Featuring the latest generation of LED technology, The XTA series is the ideal choice for your next project.
ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFT of the boards.

L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable

3000k_symbol4000k_symbol5000krgb_symbolrgbw_symboltuneable-white_symbolcyanosis_symbol

down_symbol

135_symbolcross-90_symboltee-90_symbolcorner-90_symbolceiling-to-wall_symbolcustom_symbol





applicable only to 2.0 Loop straight sections

downlights_symbol sensors-daylight-harvesting_symbol emergency-packs_symbol spitfire-emergency_symbol spitfire-emergency_symbol

0-10v_symboldali-control-gear_symboldsi-compatible_symboldmx_symboldimmer-switch_symbolconstant-light-output_symbolmotion-sensor_symbolripple-free_symbolbluetooth_symbol*













* For this profile the Casambi mini interface is available for remote configuration only.

Xero logo medium Recovered logo GIF5
brochure_symbol
cad-drawing_symbol
xta-3-0-square-product-image
brochure_symbol

* Casambi interface is only available in runs <393″ long. Runs over this length require a remote configuration
