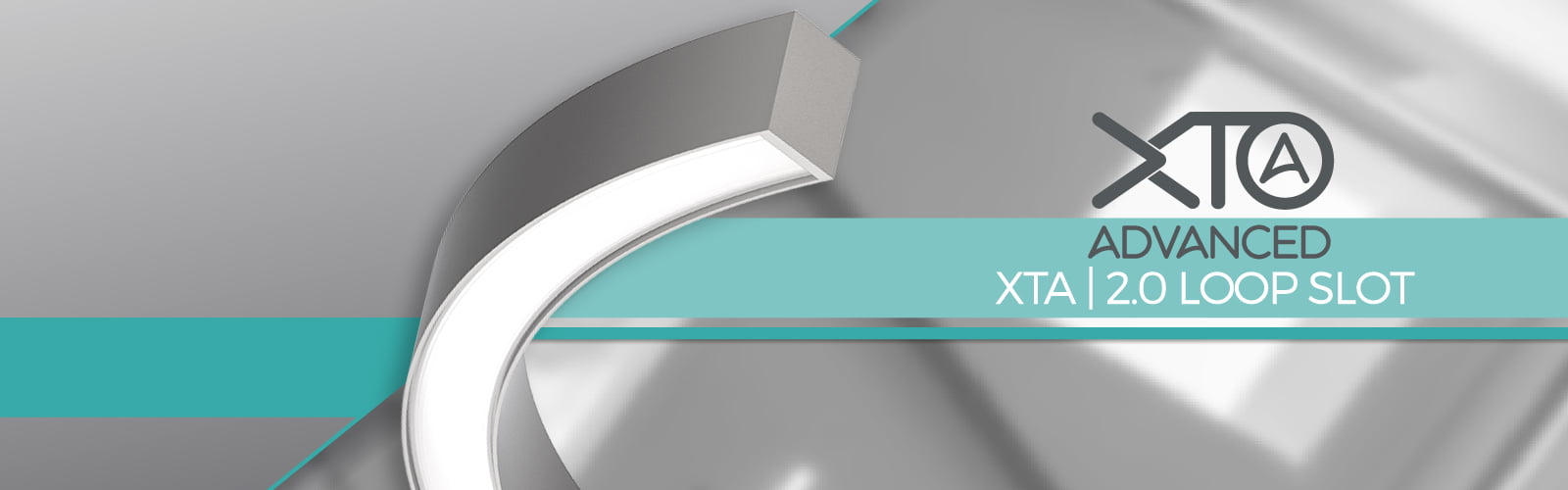

XTA | 2.0 LOOP Slot – Size: 2.36” Wide x 3.15” Highintegral gear continuous
PRODUCT OVERVIEW
The XTA | 2.0 Loop series is a streamlined body profile that can be formed into a myriad of shapes and sizes – from simple curved corners to the most complex configurations.
The only limit is your imagination.
Superior optics and Xero’s patented Speed Connect joining system enables “light leak free joins” and removable gear trays that can be upgraded in the future.
DATA TABLE
| Output | CRI | 80+ | |||
| Warranty | Proformax | 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI |
||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 2.36” Wide x 3.15” High | |||
| Weight | 2.48 Lbs average weight per foot | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
| Diffuser | Polycarbonate Opal Diffuser/ Clear Polycarbonate Diffuser | ||||
| Connections | Speed connect joining system with polarised electrical connection between sections |
||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount | ||||
| Bend Radii | 16.92″R / 32.07″R / 48.42″R as standard with custom radii available | ||||
| Joiner options | Lit corner 90º/ Cross 90º/ Tee 90º/ straight 180º join | ||||
| Endplate Options | Conseal flat or optional curved end plates | ||||
| Operating temperatures | ProformaxS – (-13ºF to 140ºF) | ||||
| Environment | Dry indoor application only IP20 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED Board types | ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible | ||||
| Optional Extras | Emergency packs | ||||
The XTA | 2.0 series brings high-quality dot free illumination to commercial interiors and semi- exterior environments. Featuring the latest generation of LED technology, The XTA series is the ideal choice for your next project.
ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFT of the boards.
L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable
 |
 |
|
 |
 |
 |
 |
 |
applicable only to 2.0 Loop Slot straight sections
*
* For this profile the Casambi mini interface is available for remote configuration only.
* Casambi interface is only available in runs <393″ long. Runs over this length require a remote configuration
