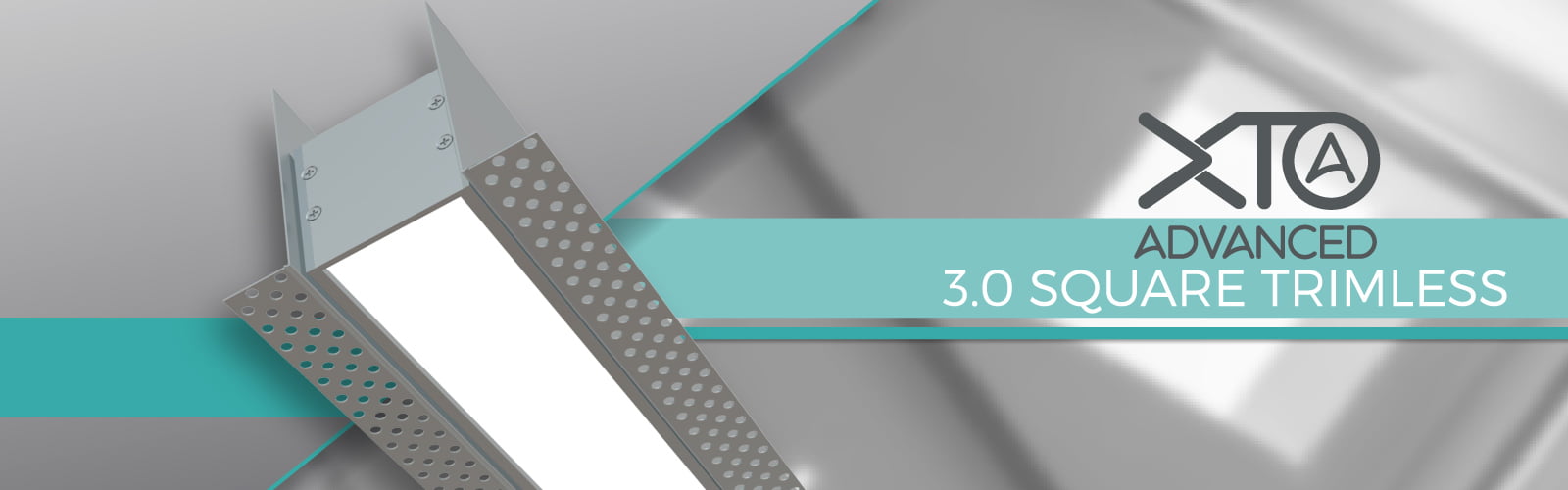

XTA | 3.0 Square TR – Size: (Niche) 6.02” Wide x 4.72” High (Luminaire) 3.15” Wide x 3.15” Highintegral gear continuous
PRODUCT OVERVIEW
The XTA 3.0 series is a medium body profile with superior optics and a unique patented speed-connect joining system that ensures “light leak free joins” with removable gear trays that can be upgraded in the future.
FEATURES
Xero ProformaxS light engines are complete with drivers plus 90 degree and 180 degree joiners that can be lit or unlit. This allows a continuous ribbon of light without compromise.
DATA TABLE
| Output | CRI | 80+ | |||
| Warranty | Proformax | 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI |
||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions – (Niche) | 6.02″ Wide x 4.72″ High | |||
| Dimensions – (Luminaire) | 3.15″ Wide x 3.15″ High | ||||
| Weight (Niche) | 2.99 lbs weight per foot | ||||
| Weight (Luminaire) | 1.34 Ibs weight per foot | ||||
| Distribution | Symmetric | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish | ||||
| Diffuser | Plexiglass / Microprism / Polycarbonate Opal Diffuser / Optic White Louvre / Semi Specular Louvre / Low UGR Plexiglass |
||||
| Connections | Speed connect joining system with polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for (drywall) ceilings | ||||
| Mounting | Site adjustable plaster trim kit (only) | ||||
| Joiner options | Lit corner 90º / Cross 90º / Tee 90º / Straight 180º Join | ||||
| Operating temperatures | ProformaxS – (-13ºF to 140ºF) | ||||
| Environment | Dry indoor application only IP20 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED Board types | ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible | ||||
| Optional Extras | Emergency packs | ||||
The XTA 3.0 series brings high-quality dot free illumination to commercial interiors and semi-exterior environments. Featuring the latest generation of LED technology, the XTA series is the ideal choice for your next project.ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the life of the boards.
L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable.
click on selection above to view larger image
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
*
* For this profile the Casambi mini interface is available for remote configuration only.
* Casambi interface is only available in runs <393″ long. Runs over this length require a remote configuration
