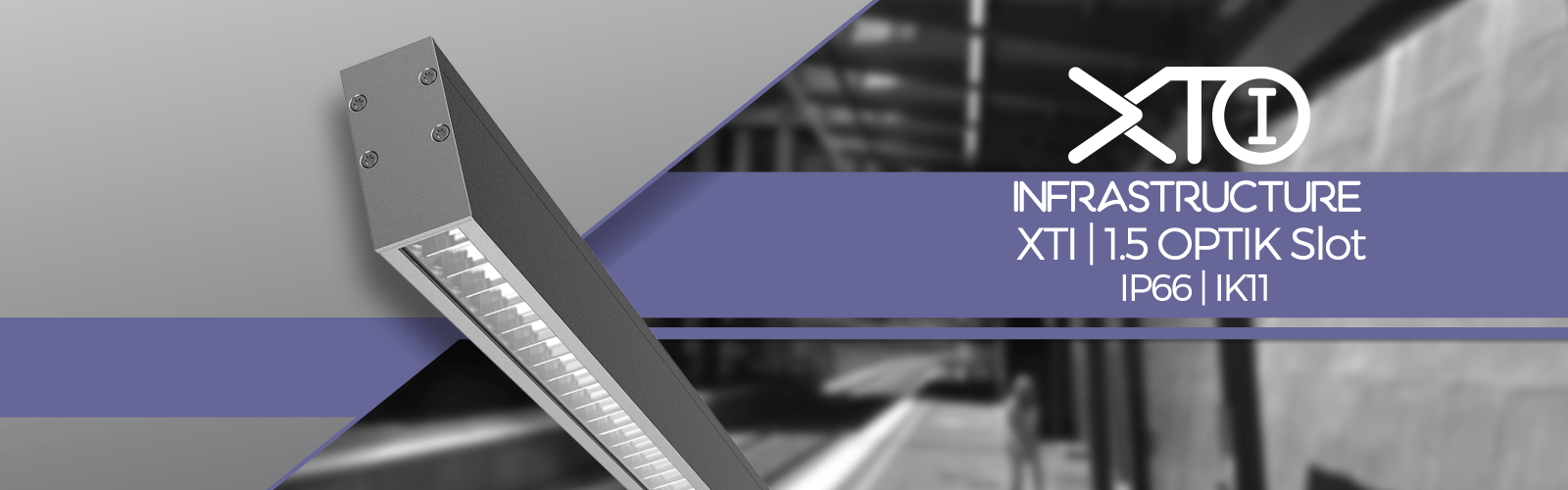

XTI | 1.5 OPTIK Slot | IP66 | IK11 – Size: 1.65” Wide x 3.42” Highintegral gear continuous
PRODUCT OVERVIEW
FEATURES
The XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
| Output | 4ft Length | Delivered Lumens / LO = 4300 / HO = 8000 | |||
| CRI | 80+ | ||||
| Warranty | Proformax | 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI Dimming control: DALI |
||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 1.65” Wide x 3.42” High | |||
| Weight | 2.78 lbs average weight per foot | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
| Diffuser | Polycarbonate Diffuser / Clear Polycarbonate Diffuser / Internal anti-glare ba ffle | ||||
| Connections | Optional IP Rated polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Field adjustable Rollerball Wire Suspensions / Surface Mounting / Custom Mounting / Rod Suspension / Wall Mounting | ||||
| Joiner options | (Non lit) 90º Butt bend / Tee Butt bend | ||||
| Operating temperatures | ProformaxS – (-13ºF to 140ºF) | ||||
| Environment | Luminaire IP66 (Not in direct sunlight, diffuser must not face upwards). | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED Board types | ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible | ||||
| Optional Extras | Emergency packs | ||||
Single
Twin
Triple
Custom*
Note: By using a combination of cover plate and baffle a 1mm increment can be created.
Talk with your local Xero Specification Consultant for your custom design options.
xerolightingusa.com/contact
The XTI | 4.0 Xero Linear Lighting System brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, the XTI series is the perfect choice for your next infrastructure project.
The Xeramix LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards. The LED light engines have 100,000 hour life to L90 and 3 step McAdam ellipse at END OF life at 75ºC. This performance is unmatched.
L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable
(Down distribution) Optic available in 18º / 28º / 52º / 64º / and 30º x 60º wall wash.
Down Optics
click on selection above to view larger image
Unlit butt bends only
