PRODUCT OVERVIEW

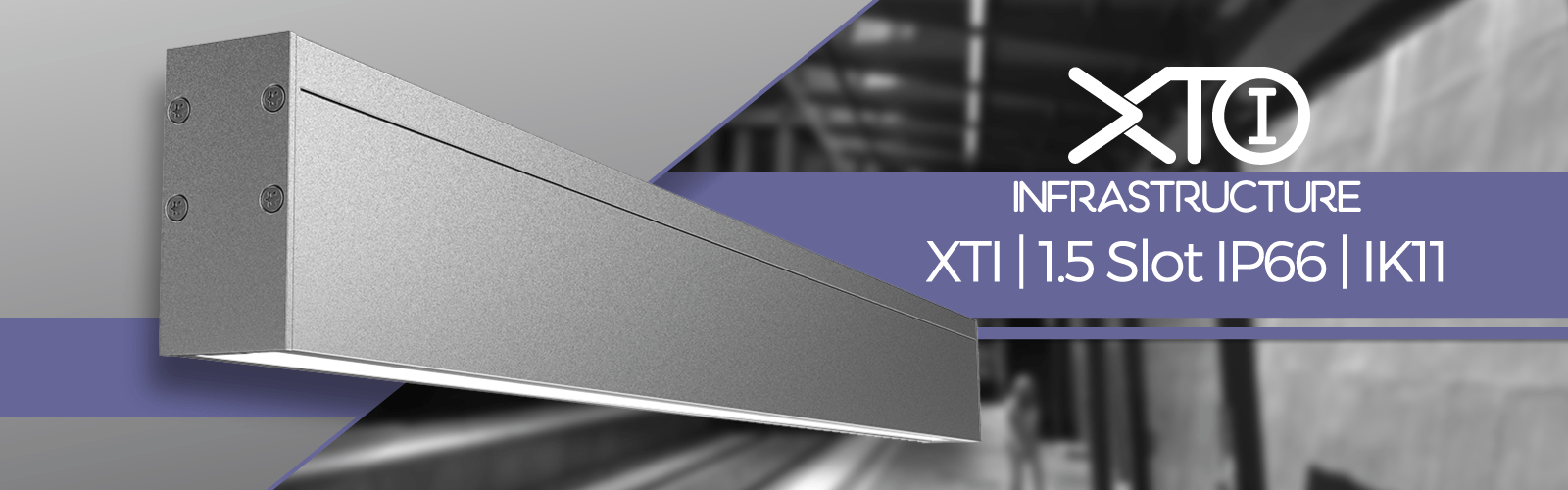

XTI | 1.5 Slot | IP66 | IK11 – Size: 1.65” Wide x 3.42” Highintegral gear continuous

FEATURES
The XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.

DATA TABLE
Output 4ft Length Delivered Lumens / LO = 4300 / HO = 8000
CRI 80+
Warranty Proformax 7 years
Electrical Voltage input range 120 – 277V
Control methods Dimming options for white light: 0-10V, DALI
Dimming control: DALI
Total harmonic distortion THD 9.8% max
Approvals UL / CE / CCC / AS:NZS / EMC
Physical Dimensions 1.65” Wide x 3.42” High
Weight 2.73 lbs average weight per foot
Housing Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request
Diffuser Opaque Polycarbonate Diffuser / Clear Polycarbonate Diffuser
Connections Optional IP Rated polarised electrical connection between sections
Compatible ceiling type Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings
Mounting Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount / custom mounting
Joiner options (Non lit) 90º Butt bend / Tee Butt bend
Operating temperatures ProformaxS – (-13ºF to 140ºF)
Environment Luminaire IP66 (Not in direct sunlight, diffuser must not face upwards).
Minimum length adjustment 5.51″
LED Board types ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible
Optional Extras Emergency packs

The XTI | 1.5 Xero Linear Lighting System brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, the XTI series is the perfect choice for your next infrastructure project.
The Xeramix LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards. The LED light engines have 100,000 hour life to L90 and 3 step McAdam ellipse at END OF life at 75ºC. This performance is unmatched.

L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable

3000k_symbol4000k_symbol5000ktuneable-white_symbolcyanosis_symbol

Down Optics



click on selection above to view larger image



Unlit butt bends only

Vandal Proof

0-10v_symboldali-control-gear_symbolmotion-sensor_symbol

ul-cert_symbol

DATA SHEET Icon
cad-drawing_symbol
brochure_symbol
