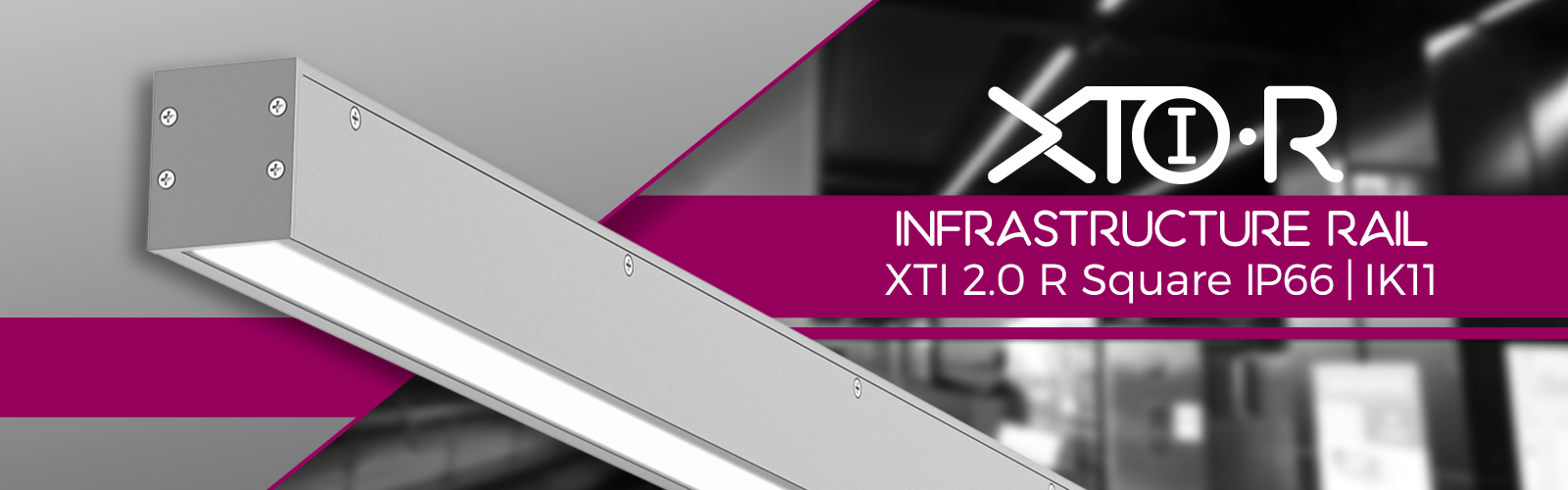

XTI | R 2.0 Square | IP66 | IK11 – Size: 2.36” Wide x 2.75” Highintegral gear continuous
PRODUCT OVERVIEW
FEATURES
the XTI-R profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
|
Output
|
CRI | 80+ | |||
| Warranty | ProformaxS | ProformaxS = 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI |
||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 2.36” Wide x 2.75” High | |||
| Weight | 2.42 lbs average weight per foot | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
| Diffuser | Opaque Polycarbonate Diffuser / Clear Polycarbonate Diffuser / Parabolic Louvre | ||||
| Connections | Optional IP Rated polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount / custom mounting | ||||
| Joiner options | (Non lit) 90º Butt bend / Tee Butt bend | ||||
| Operating temperatures | ProformaxS (-13ºF to 140ºF) | ||||
| Environment | Luminaire IP66 (Not in direct sunlight, diffuser must not face upwards). | ||||
| IK rating | IK11 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED board types | ProformaxS boards and drivers in 3.93″ / 11.02″ / and 22.04″ Zhaga compatible | ||||
| Vandal-proof | Available with anti-vandal fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental Plugs / Thermal throttle / IOT connectivity / Anti-Graffiti / Self Cleaning Coating / Halogen Free Diffuser / Anti Bird Roosting | ||||
The XTI-R series brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, The XTI-R series is the ideal choice for your next infrastructure project.
Proformax S LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards.
L80 B10 82,000hrs @ 95ºF
Proformax S boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable
CREATING LENGTHS WITH XTI-R 2.0 Square IP66 IK11
The XTI-R 2.0 IP66 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
Down Optics
click on selection above to view larger image
Unlit butt bends only
