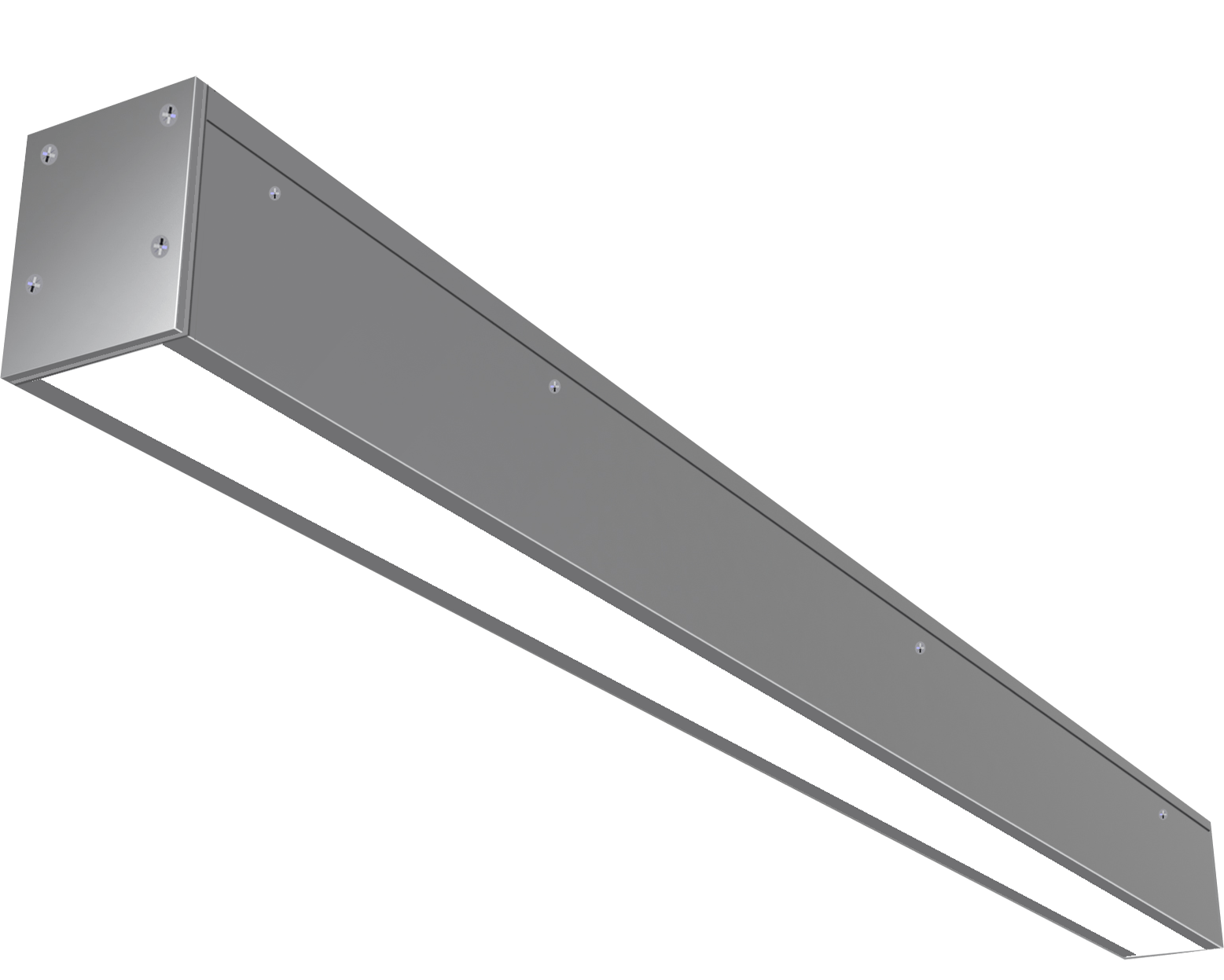

XTI | R 3.0 Square IP66 IK11 – Size: 3.15″ Wide x 3.15″ Highintegral gear continuous
PRODUCT OVERVIEW
FEATURES
the XTI-R profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
|
Output
|
CRI | 80+ | |||
| Warranty | ProformaxS | ProformaxS = 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Diming control DMX or DALI XI |
||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 3.15″ High x 3.15″ Wide | |||
| Weight per foot | (2.96lbs) average weight per foot | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
| Diffuser | Polycarbonate Opal Diffuser/ Clear Polycarbonate Diffuser / Parabolic Louvre | ||||
| Connections | Optional IP Rated polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Field adjustable Rollerball Wire Suspensions / Surface Mounting / Custom Mounting / Rod Suspension / Wall Mounting | ||||
| Joiner options | (Non lit) 90º Butt bend / Tee Butt bend | ||||
| Operating temperatures | ProformaxS (-13ºF to 140ºF) | ||||
| Environment | Luminaire IP66 (Not in direct sunlight, diffuser must not face upwards). | ||||
| IK rating | IK11 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED board types | ProformaxS boards and drivers in 3.93″ / 11.02″ / and 22.04″ Zhaga compatible | ||||
| Vandal-proof | Available with anti-vandal fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental Plugs / Thermal throttle / IOT connectivity / Anti-Graffiti / Self Cleaning Coating / Halogen Free Diffuser / Anti Bird Roosting | ||||
The XTI-R series brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, The XTI-R series is the ideal choice for your next infrastructure project.
Proformax S LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards.
L80 B10 82,000hrs @ 95ºF
Proformax S boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
CREATING LENGTHS WITH XTI-R 3.0 Square IP66 IK11
The XTI-R 3.0 IP66 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
Down Optics
click on selection above to view larger image
Unlit butt bends only
