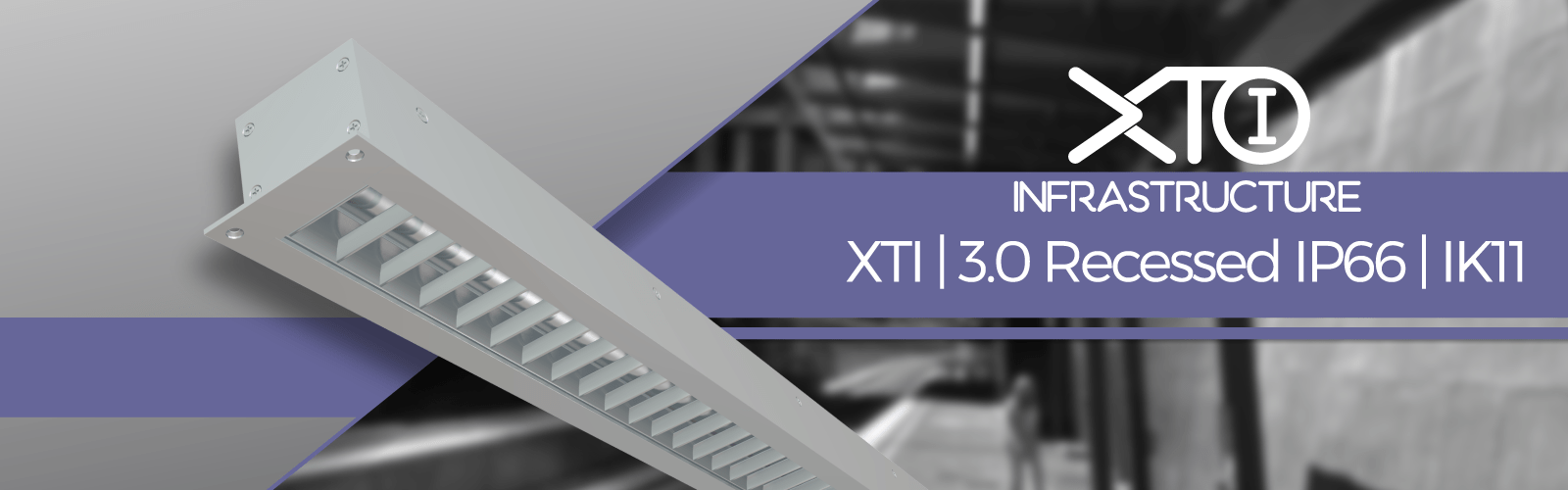

XTI | 3.0 Square | IP66 | IK11 – Size: 3.15” Wide (3.78“ inc flange) x 3.15” Highintegral gear continuous
PRODUCT OVERVIEW
FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
|
Output
|
CRI | 80+ | |||
| Warranty | ProformaxS | ProformaxS = 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Diming control DMX or DALI XI |
||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 3.15” Wide (3.78“ inc flange) x 3.15” High | |||
| Weight | 2.90 lbs average weight per foot | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
| Diffuser | Opaque Polycarbonate Diffuser / Clear Polycarbonate Diffuser / Parabolic Louvre | ||||
| Connections | Optional IP Rated polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Wire Suspension, Surface mount (with external bracket), Wall Blocks, End wall Bracket | ||||
| Joiner options | (Non lit) 90º Butt bend / Tee Butt bend | ||||
| Operating temperatures | ProformaxS (-13ºF to 140ºF) | ||||
| Environment | Luminaire IP66 (Not in direct sunlight, diffuser must not face upwards). | ||||
| IK rating | IK11 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED board types | ProformaxS boards and drivers in 3.93″ / 11.02″ / and 22.04″ Zhaga compatible | ||||
| Vandal-proof | Available with anti-vandal fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental Plugs / Thermal throttle / IOT connectivity / Anti-Graffiti / Self Cleaning Coating / Halogen Free Diffuser / Anti Bird Roosting | ||||
The XTI series brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, The XTI series is the ideal choice for your next infrastructure project.
Proformax S LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards.
L80 B10 82,000hrs @ 95ºF
Proformax S boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable
CREATING LENGTHS WITH XTI 3.0 Recessed IP66 IK11
The XTI 3.0 IP66 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
Down Optics
click on selection above to view larger image
Unlit butt bends only
