PRODUCT OVERVIEW

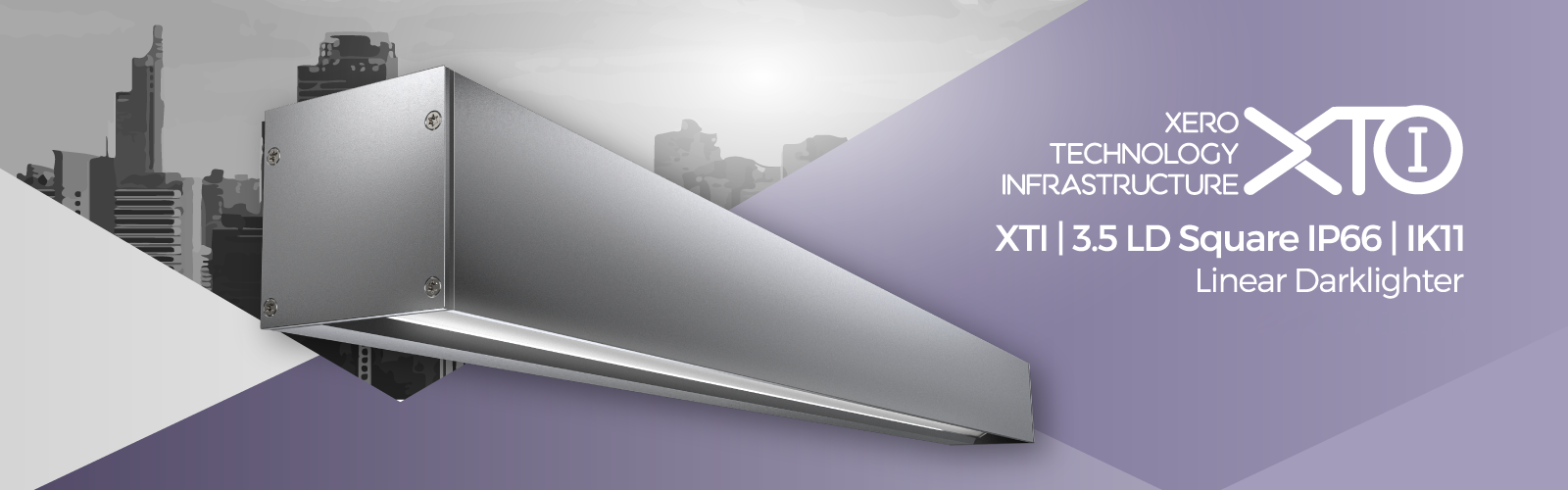

XTI 3.5 LD Square (Linear Darklighter) – 3.54″ Wide x 3.54″ Highintegral gear continuous

FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry-first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.

DATA TABLE
Output
CRI 80+
Warranty ProformaxS ProformaxS = 7 years
Electrical Voltage input range 120 – 277V
Control methods Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset
Diming control DMX or DALI XI
Approvals UL / CE / CCC / AS:NZS / EMC
Physical Dimensions 3.54″ Wide x 3.54″ High
Weight (3.14lbs) average weight per foot
Housing Aluminium Extrusion with anodised or powder-coated finish
Diffuser Polycarbonate Opal Diffuser/ Clear Polycarbonate Diffuser
Semi Specular Louvre / Optic White Louvre
Connections Optional IP Rated polarised electrical connection between sections
Compatible ceiling type Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings
Mounting Field adjustable Rollerball Wire Suspensions / Surface Mounting / Custom Mounting / Rod Suspension / Wall Mounting
Joiner options (Non lit) 90º Butt bend / Tee Butt bend
Operating temperatures ProformaxS (-13ºF to 140ºF)
Environment Luminaire IP66 (Not in direct sunlight, diffuser must not face upwards).
IK rating IK11
Minimum length adjustment 5.51″
LED board types ProformaxS boards in 5.51” / 11.02” / 22.0” lengths Zhaga compatible
Vandal-proof Proformax RGBW in 50 / 100 / 280mm lengths Zhaga compatible
Available withAnti-Vandal Fasteners
Optional extras Lanyards / Emergency packs / Camera / Environmental Plugs /Thermal throttle /
IOT connectivity / Low smoke / Zero Halogen

The XTI series brings high-quality dot free illumination to commercial and exterior environments. Featuring the latest generation of LED technology, The XTI series is the ideal choice for your next infrastructure project.
Proformax S LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards.

L80 B10 82,000hrs @ 95ºF
Proformax S boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable

3000k_symbol4000k_symbol5000krgb_symbolrgbw_symboltuneable-white_symbolcyanosis_symbol

CREATING LENGTHS WITH XTI 3.5 LD SQUARE (LINEAR DARKLIGHTER)

The XTI 3.5 IP66 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information

Down Optics



click on selection above to view larger image

MOUNTING OPTIONS XTI R SERIES



Unlit butt bends only

     Vandal Proof Option Icon

0-10v_symboldali-control-gear_symbolmotion-sensor_symbol

ul-cert_symbol

DATA SHEET Icon
cad-drawing_symbol
wire-suspension_symbol
