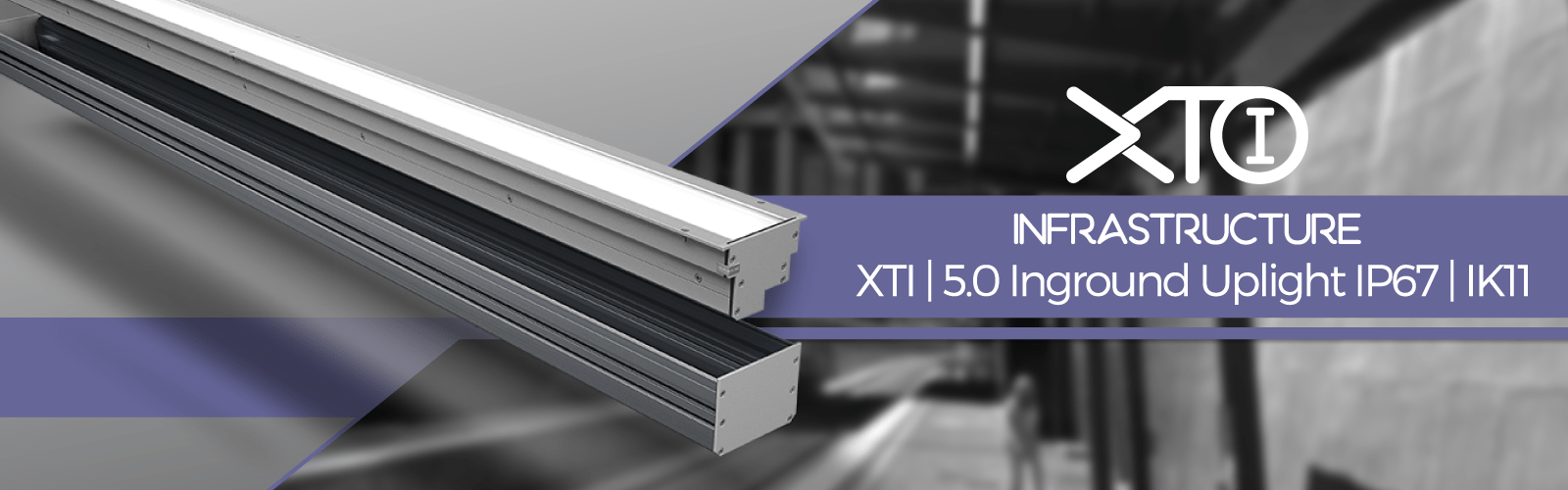

XTI | 5.0 Inground Uplight | IP67 | IK10+ Size: 4.80” Wide x 3.54” High (including niche)integral gear continuous
PRODUCT OVERVIEW
Please note: Multiple luminaires can be joined together to achieve any continuous length.
The XTI | 5.0 Inground Uplight IP67 IK10+ brings high-quality dot free illumination to exterior environments. Featuring the latest generation of LED technology, The XTI | 5.0 Inground Uplight IP67 IK10+ is the perfect choice for the illumination of building architecture , retail and public spaces.
DATA TABLE
| Output | Proformax 24 | CRI | 80+ | ||
| Lumen Maintenance | 80,000 Hours ( L80 B20 @ 95°F ) | ||||
| Proformax S | CRI | 90+ | |||
| Lumen Maintenance | 82,000 Hours ( L80 B10 @ 95°F ) | ||||
| Warranty | Proformax 24 | 5 years | |||
| Proformax S | 7 years | ||||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | DALI 2 | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | Luminiare 4.80″ Wide x 2.16″ High (including niche Height is 3.54″) | |||
| Weight | 5.01 lbs average weight per foot | ||||
| Housing | Stainless steel | ||||
| Diffuser | Laminated & Toughened Glass with white interlayer Optional colour interlayer available |
||||
| Connections | Optional IP Rated polarised electrical connection between sections | ||||
| Distribution | Symmetric distribution | ||||
| Mounting | Inground niche for concrete or paving installation | ||||
| Joiner options | Straight joiners or butt corners | ||||
| Operating temperatures | Proformax S – (-13ºF to 95ºF) | Proformax 24 – (-13ºF to 140ºF) | ||||
| Environment | IP67 | ||||
| IK rating | IK10 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED Board types | Proformax24 (24 V system) 5.51″ / 11.02″ / 22.05″ lengths. Zhaga compatible Proformax S in 5.51″ / 11.02″ / 22.05″ lengths. Zhaga compatible |
||||
| Vandal-proof | Available with anti-vandal fasteners | ||||
| Optional Extras | Thermal throttle, environmental plug, polarised / IP rated plug and socket Environmental anti-graffiti coating | ||||
MAXIMUM LENGTH
The maximum length of the XTI | 5.0 is 89″ in any single piece – Multiple pieces can be joined to achieve any overall length
CUSTOM LENGTHS
Custom lengths are available in 0.98″ increments
The XTI | 5.0 Inground Uplight IP67 IK10+ brings high-quality dot free illumination to exterior environments. Featuring the latest generation of LED technology, The XTI | 5.0 Inground Uplight IP67 IK10+ is the perfect choice for the illumination of building architecture , retail and public spaces with its clean, uninterrupted distribution of light.
ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the life of the boards.
L80 B20 @ 95°F 80,000 hours
Proformax24 boards are both high output and high efficiency combined giving unmatched flexibility.
L80 B10 82,000hrs @ 95ºF
Proformax S boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
