PRODUCT OVERVIEW

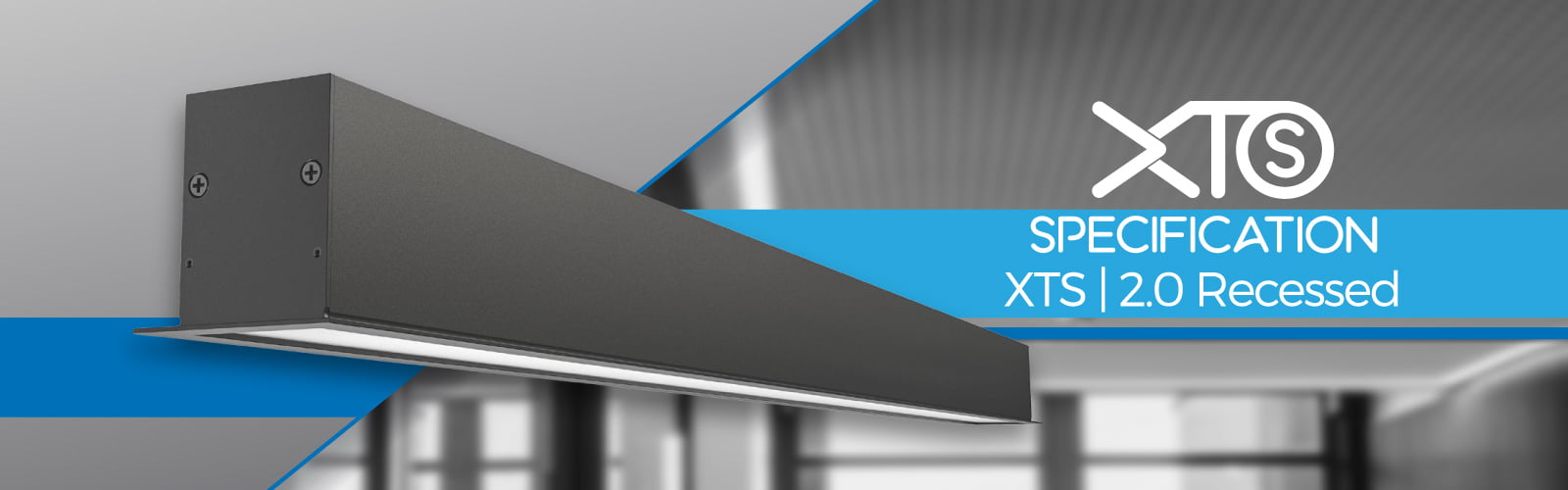

XTS | 2.0 Recessed – Size: 2.16” Wide (inc flange 2.87“) x 2.95” Highintegral gear continuous

The XTS | 2.0 series is an ideal specification profile with superior optics and removable gear trays that can be upgraded in the future.

FEATURES
Xero’s ProformaxS light engines with drivers come with 90º and 180º joiners that can be lit or unlit. This allows possibilities that provide continuous ribbons of light without compromise. All XTS products come with a 7 year warranty using ProformaxS light engines.

illustration shows ‘optional’ screw-less endplate

DATA TABLE
Output CRI 80+
Warranty Proformax 7 years
Electrical Voltage input range 120 – 277V
Control methods Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset
Dimming control DMX or DALI XI
Total harmonic distortion THD 9.8% max
Approvals UL / CE / CCC / AS:NZS / EMC
Physical Dimensions 2.16” Wide (inc flange 2.87“) x 2.95” High
Weight 1.83 lbs average weight per foot
Housing Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request
Diffuser Polycarbonate Opal Diffuser
Connections Speed connect joining system with polarised electrical connection between
sections
Compatible ceiling type Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings
Mounting Dry wall clips as standard
Joiner options Lit corner 90º / Cross 90º / Tee 90º / Straight 180º Join
Operating temperatures ProformaxS – (-13ºF to 140ºF)
Environment Dry indoor application only IP20
Minimum length adjustment 5.51″
LED Board types ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible
Optional Extras Emergency packs

The XTS 2.0 series brings high-quality dot free illumination to commercial interior environments. Featuring the latest generation of LED technology, the XTA series is the ideal choice for your next project. ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the life of the boards.

L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable.

3000k_symbol4000k_symbol5000krgb_symbolrgbw_symboltuneable-white_symbolcyanosis_symbol

down_symbol

click on selection above to view larger image

135_symbolcross-90_symboltee-90_symbolcorner-90_symbolceiling-to-wall_symbolcustom_symbol

downlights_symbol sensors-daylight-harvesting_symbol emergency-packs_symbol

0-10v_symboldali-control-gear_symboldsi-compatible_symboldmx_symboldimmer-switch_symbolconstant-light-output_symbolmotion-sensor_symbolripple-free_symbolbluetooth_symbol

ul-cert_symbol

brochure_symbol
cad-drawing_symbol
xta-3-0-square-product-image
brochure_symbol

* Casambi interface is only available in runs <393″ long. Runs over this length require a remote configuration
