PRODUCT OVERVIEW

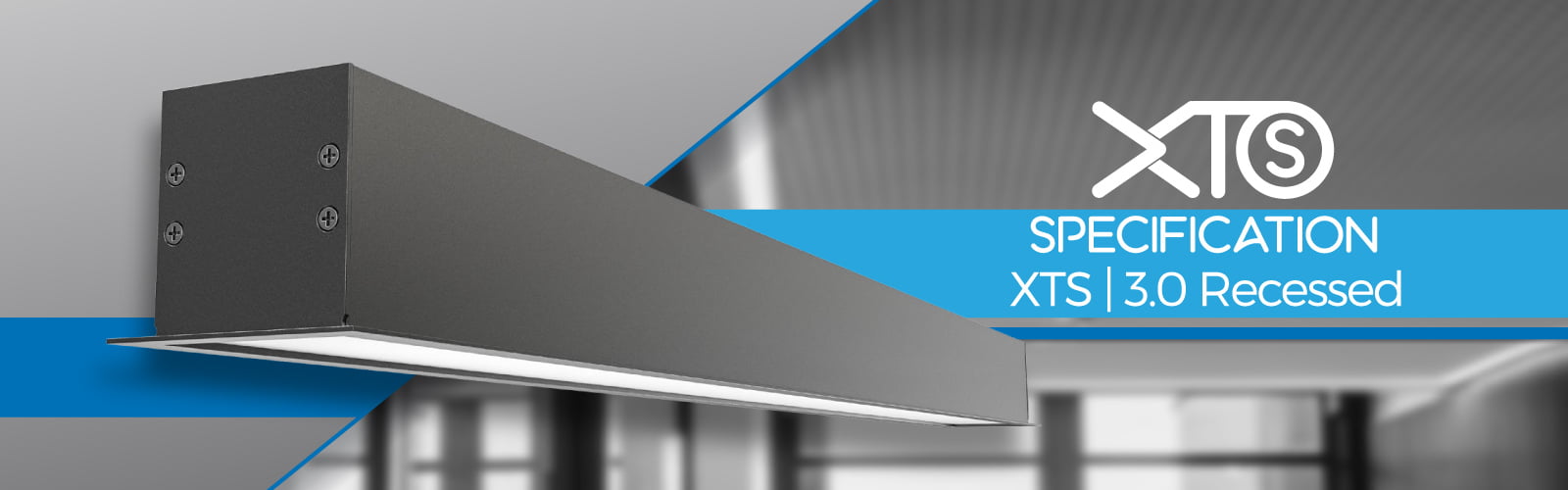

XTS | 3.0 Recessed – Size: 2.67” Wide (inc flange 3.62“) x 3.18” Highintegral gear continuous
The XTS | 3.0 series is an ideal specification profile with superior optics and removable gear trays that can be upgraded in the future.
FEATURES
Xero’s ProformaxS light engines with drivers come with 90º and 180º joiners that can be lit or unlit. This allows possibilities that provide continuous ribbons of light without compromise. All XTS products come with a 7 year warranty using ProformaxS light engines.
illustration shows ‘optional’ screw-less endplate
DATA TABLE
| Output | CRI | 80+ | |||
| Warranty | Proformax | 7 years | |||
| Electrical | Voltage input range | 120 – 277V | |||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI |
||||
| Total harmonic distortion THD | 9.8% max | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 2.67” Wide (inc flange 3.62“) x 3.18” High | |||
| Weight | 1.89 lbs average weight per foot | ||||
| Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
| Diffuser | Plexiglass | ||||
| Connections | Speed connect joining system with polarised electrical connection between sections |
||||
| Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
| Mounting | Dry wall clips as standard | ||||
| Joiner options | Lit corner 90º / Cross 90º / Tee 90º / Straight 180º Join | ||||
| Operating temperatures | ProformaxS – (-13ºF to 140ºF) | ||||
| Environment | Dry indoor application only IP20 | ||||
| Minimum length adjustment | 5.51″ | ||||
| LED Board types | ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible | ||||
| Optional Extras | Emergency packs | ||||
The XTS 3.0 series brings high-quality dot free illumination to commercial interior environments. Featuring the latest generation of LED technology, the XTA series is the ideal choice for your next project. ProformaxS LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the life of the boards.
L80 B10 82,000 hours @95ºF
PerformaxS boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current, any output is achievable.
click on selection above to view larger image
 |
|||
 |
* Casambi interface is only available in runs <393″ long. Runs over this length require a remote configuration
