PRODUCT OVERVIEW
XTI | 3.0 Square IP66 IK10 – Size: 80mm Wide x 80mm Highintegral gear continuous
The XTI series is an IP66 / IK10 profile that is capable of 50*C ambient locations and, with the installation of the Xeramix R system, has a 15 year warranty
FEATURES
the XTI profile has a continuous ribbon diffuser that has no joins or breaks. This industry first profile can house ancillary components such as speakers and emergency packs and can be mounted directly to the surface, suspended or with custom brackets designed on application.
DATA TABLE
|
Output
|
4ft Length
1120mm |
Luminous Flux
(Delivered Lumens) |
LO
1900 |
HO
3500 |
|
| CRI | 80+ | ||||
| Lumen Maintenance | 114,000 hours
[L90 B10 @ 50°C] 1M hours |
||||
| Warranty | Xeramix 1 10 years Xeramix R = 15 years | ||||
| Electrical | Power Consumption | Between 20 and 45w/m | |||
| Voltage input range | 120 – 277V | ||||
| Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI | ||||
| Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
| Physical | Dimensions | 80 X 80 mm (3.149″) | |||
| Housing | Aluminium Extrusion with anodised or powder coated finish | ||||
| Diffuser | Opaque Polycarbonate Diffuser / Clear Polycarbonate Diffuser / Parabolic Louvre | ||||
| Connections | Polarised electrical connection between sections | ||||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings | ||||
| Mounting | Field adjustable rollerball wire suspensions / rod suspensions / wall mounting / surface mount / custom Mounting | ||||
| Joiner options | 90º/ Straight / 180º/ Custom | ||||
| Operating temperatures | -25*C to 50*C (-13F to 140*F) | ||||
| Environment | IP66 | ||||
| Minimum length adjustment | 25mm | ||||
| LED board types | Xeramix 1 and Xeramix R Boards and drivers in 25mm compatible / 100mm 280mm and 560mm Zhaga lengths | ||||
| IK rating | IK10 | ||||
| Vandal proof | Available with anti-vandal fasteners | ||||
| Optional extras | Lanyards / Emergency packs / Camera / Environmental plugs / Thermal throttle / IOT connectivity | ||||
|
DESCRIPTION
|

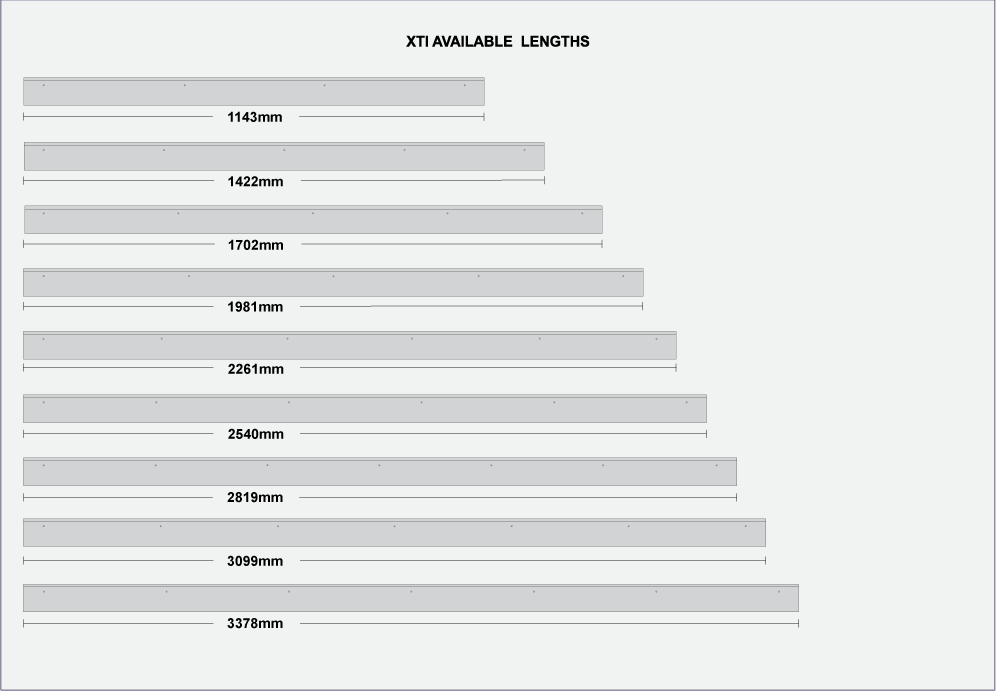

LENGTHS
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| total luminaire length in mm | 1143 | 1422 | 1702 | 1981 | 2261 | 2540 | 2819 | 3099 | 3378 |
| total luminaire length in inches | 45 | 56 | 67 | 78 | 89 | 100 | 111 | 122 | 133 |
| ‘560 board multiples | 2.0 | 2.5 | 2.0 | 3.5 | 4.0 | 4.5 | 4.5 | 5.5 | 6.0 |
EXAMPLE OF STANDARD LENGTH COMBINATION
CREATING LENGTHS WITH XTI 3.0 Square IP66 IK10
The XTI 3.0 IP66 IK10 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
CUSTOM LENGTHS
Custom lengths are available in 0.984″ (25mm) increments
The XTI | 3.0 Xero Linear Lighting System brings high-quality dot free illumination to commercial and institutional interior environments. Featuring the latest generation of LED technology, The XTI | 3.0 is the perfect choice for offices, retail and public spaces with clean, uninterrupted lines of light that comes from Xero’s exclusive patent ‘SpeedConnect’ System
Xeramix LED light engines are LED boards that utilise ceramic based LED chips that provide outstanding light quality over the LIFE of the boards. The LED light engines have 100,000 hour life to L90 and 3 step McAdam ellipse at END OF LIFE at 75 degrees C. This performance is unmatched.For more information on the Xeramix LED light engines and the difference between plastic and ceramic LED’s please visit xeramix.com
L90 B10 114,000 hours @ 50*C
Xeramix 1 boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable
L70 B10 1,000,000 hours @35*C
Xeramix R boards are both high output and high efficiency combined giving unmatched flexibility, by tuning the drive current any output is achievable.
CREATING LENGTHS WITH XTI 3.0 Square IP66 IK10
The XTI 3.0 IP66 set lengths can be coupled together in any combination to achieve the desired length.
Note: custom lengths are also available – please consult your local Xero office for information
Down Optics
