STANDARD SIZES

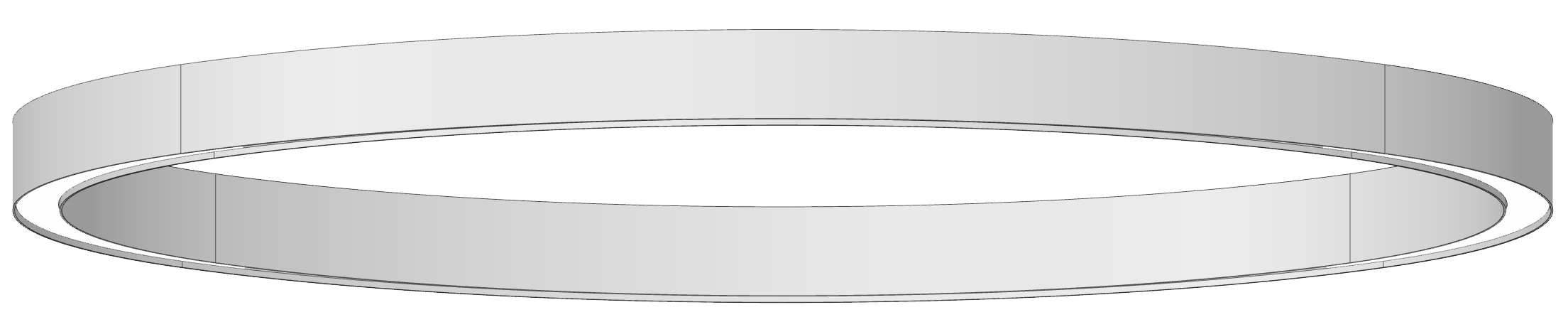

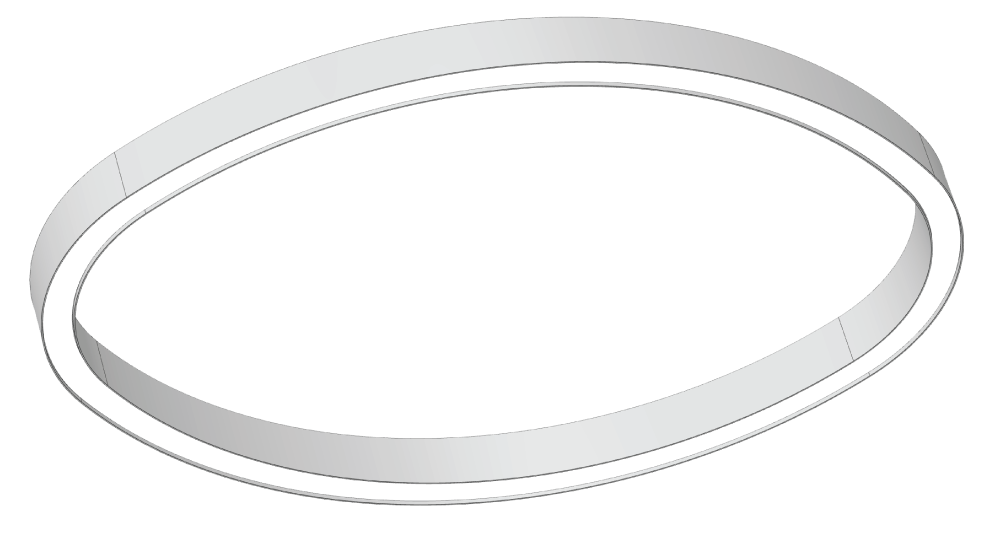

XTA | 2.5 Ellipse Beam 56.1″
Run length:155.8″
XTA | 2.5 Ellipse Beam 78.3″
Run length:205.3″
XTA | 2.5 Ellipse Beam 87.6″
Run length:254.8″
DOWNLOAD
SPECIFICATION
SHEET
for all 3 standard sizes
SPECIFICATION
SHEET
for all 3 standard sizes
DATA TABLE
| Optic Module LED Engine |
Proformax | CRI | 90+ |
| Lumen Maintenance | 82,000 Hours | ||
| Warranty | 7 years | ||
| Dimensions | (Profile size 2.79″ x 5.11″) Ellispe sizes – 56.1″ x 43″ / 78.3″ x 52.3″ / 87.3″ x 74.5″ | ||
| Weight | XTA | 2.5 Ellipse Beam 56.1″ (27.8lbs) / XTA | 2.5 Ellipse Beam 78.3″ (39.2lbs) / XTA | 2.5 Ellipse Beam 87.6″ (42.8lbs) |
||
| IP Rating | IP20 (dry indoor application only) | ||
| Compatible ceiling type | Suitable for gyprock (drywall) ceilings, metal pan, concrete, timber and T-bar grid ceilings | ||
| Mounting | Wire suspensions, rod suspensions, surface mounting, ceiling mounting | ||
To create fully customisable variations of this profile
go to – XTA | 2.5 Loop Slot
