PRODUCT OVERVIEW

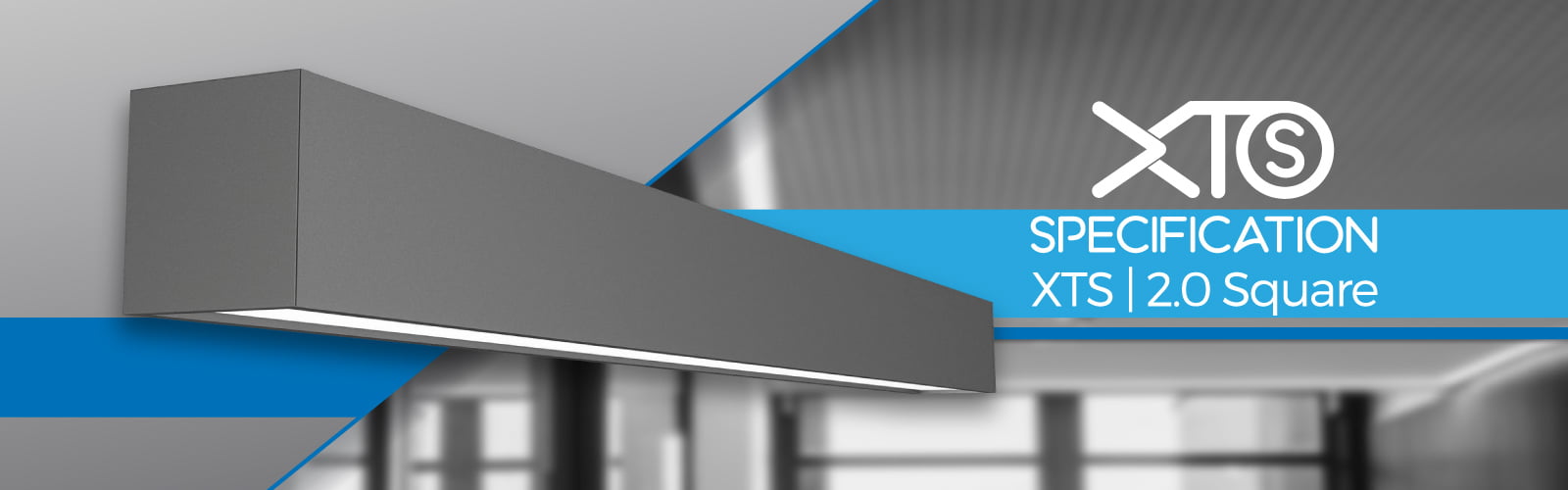

XTS | 2.0 Square – Size: 2.36” Wide x 2.56” Highintegral gear continuous
![](https://xerolightingusa.com/wp-content/uploads/2023/01/XTS_2_0_Square_side_view_web.x66874.png)
The XTS | 2.0 series is an ideal specification profile with superior optics and removable gear trays that can be upgraded in the future.
FEATURES
Xero’s ProformaxS light engines with drivers come with 90º and 180º joiners that can be lit or unlit. This allows possibilities that provide continuous ribbons of light without compromise. All XTS products come with a 7 year warranty using ProformaxS light engines.
![](https://xerolightingusa.com/wp-content/uploads/2023/01/XTS_2_0_Square_Dimensions.x66874.png)
![](https://xerolightingusa.com/wp-content/uploads/2020/02/Proformax-7-years_logo.x66874.png)
DATA TABLE
Output | CRI | 80+ | |||
Warranty | Proformax | 7 years | |||
Electrical | Voltage input range | 120 – 277V | |||
Control methods | Dimming options for white light: 0-10V, DALI, DMX Optional RGB / Sunset Dimming control DMX or DALI XI |
||||
Total harmonic distortion THD | 9.8% max | ||||
Approvals | UL / CE / CCC / AS:NZS / EMC | ||||
Physical | Dimensions | 2.36″ Wide x 2.56″ High | |||
Weight | 2.01 lbs average weight per foot | ||||
Housing | Aluminium Extrusion with anodised or powder-coated finish Standard colours powder-coated: white/black/silver/ custom on request | ||||
Diffuser | Polycarbonate Opal Diffuser | ||||
Connections | Speed connect joining system with polarised electrical connection between sections |
||||
Compatible ceiling type | Suitable for drywall ceilings, metal pan, concrete, timber and T bar grid ceilings | ||||
Mounting | Surface Mounting / Custom Mounting / Rod Suspension / Wall Mounting | ||||
Joiner options | Lit corner 90º / Cross 90º / Tee 90º / Straight 180º Join | ||||
Operating temperatures | ProformaxS – (-13ºF to 140ºF) | ||||
Environment | Dry indoor application only IP20 | ||||
Minimum length adjustment | 5.51″ | ||||
LED Board types | ProformaxS boards in 5.51″ / 11.02″ / 22.0″ lengths Zhaga compatible | ||||
Optional Extras | Emergency packs |
